| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

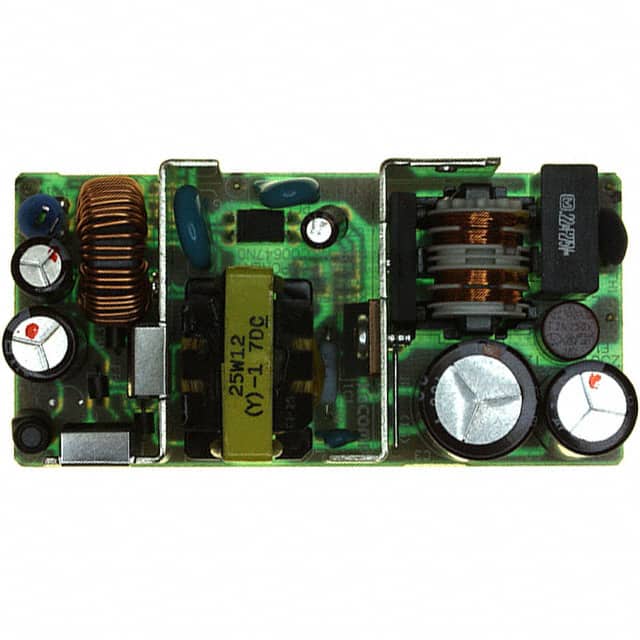

The Kaga Electronics USA KRS25F-12 is a 25W AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264VAC and provides a stable 12VDC output at 2.1A.
This converter features an open-frame construction and is designed for through-hole mounting, making it suitable for integration into various electronic systems. Key electrical specifications include an efficiency of 80% typical, a voltage adjustment range of ±10%, and an output voltage accuracy of ±5%. It also includes over-current protection that automatically recovers.
The operating temperature range is from 0°C to 70°C with derating, and it meets safety standards such as UL60950, CSA C22.2 №60950, EN60950, and IEC60950. EMI standards met include FCC Part 15 Class B and EN55022 Class B.
With its robust specifications and compliance certifications, the KRS25F-12 is a reliable power solution for commercial electronic equipment.
85-264 VAC.
12 VDC at 2.1 A.
25 W.
0°C to 70°C.
5-DIP Module.
UL60950, CSA C22.2 No.60950, EN60950, IEC60950.
FCC Part 15 Class B, EN55022 Class B, VCCI Class II.
