| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

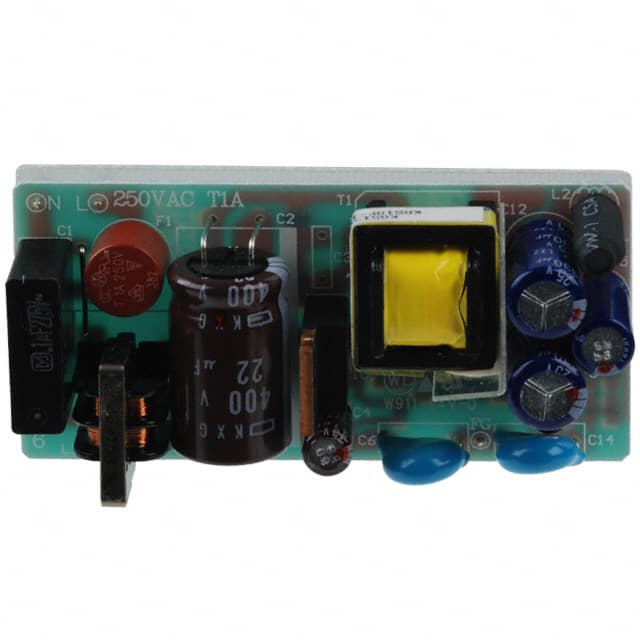

The KRS10F-12 from Kaga Electronics USA is a board-mount AC DC converter designed for commercial ITE applications. This unit delivers 10 watts of power with a single 12V output at a maximum current of 840mA.
It operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 79%. The converter is designed for through-hole mounting and comes in a 5-DIP module package. Its dimensions are 65.0mm in length, 32.0mm in width, and 16.5mm in height.
Key features include universal input capability and compliance with standards such as CE, CSA, cUL, and UL. The operating temperature range is specified as 10°C to 70°C with derating. This model is suitable for applications requiring a reliable board-level power supply solution.
The input voltage range is 85 to 264 VAC.
Output voltage is 12V and output current is 840mA.
The power rating is 10W.
The operating temperature range is -10°C to 70°C with derating.
The package is a 5-DIP module.
The efficiency is 79%.
It is approved by CE, CSA, cUL, and UL.
