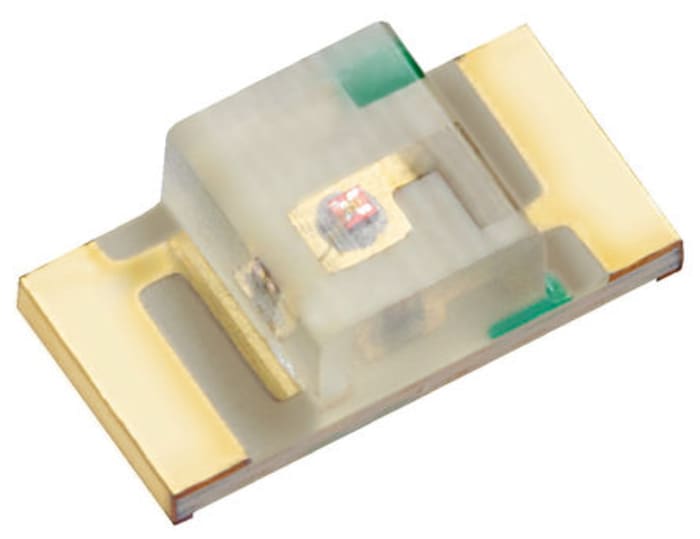

KPTR-3216ZGC This Kingbright KPTR-3216ZGC is a green LED with a 3216 surface mount package. It operates at a 4V forward voltage and offers a luminosity of 400 mcd.
Mfr Part #:

KPTR-3216ZGC

Available from 2 distributors
Mfr Name: Kingbright
Kingbright
This Kingbright KPTR-3216ZGC is a green LED with a 3216 surface mount package. It operates at a 4V forward voltage and offers a luminosity of 400 mcd.
✓ Total Stock: 4,954 pcs
$ Price Range: $0.99

KPTR-3216ZGC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
3,895 pcs
On Request
3895 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,059 pcs
On Request
1059 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KPTR-3216ZGC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Forward Voltage
Lead Style
Number of Pins
Tape & Reel
Viewing Angle
View Similar Products (0)

KPTR-3216ZGC Description

Short technical summary and product information.

The Kingbright KPTR-3216ZGC is a green LED designed for surface mount applications. It features a compact 3216 package size and a clear rectangular lens.



This component has a typical forward voltage of 4V and a maximum forward current of 150mA. It provides a luminosity of 400 mcd with a dominant wavelength of 525nm. The viewing angle is 120 degrees, and the lens dimensions are 1.4 x 1.05 mm.



With a maximum power dissipation of 102.5mW and two pins, this LED is suitable for various indication purposes. It is supplied in tape and reel packaging, recommended for automated assembly processes.

KPTR-3216ZGC Quick Information

Product Type: LED
Series: KPTR-3216
Canonical Name: Kingbright KPTR-3216ZGC Green LED
Subcategory: Discrete LED

KPTR-3216ZGC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KPTR-3216ZGC Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

KPTR-3216ZGC Features

  • Green LED with 4V forward voltage.
  • 150mA maximum forward current.
  • 400 mcd luminosity.
  • 3216 surface mount package.
  • 120 degree viewing angle.

KPTR-3216ZGC Applications

  • Status indicator for electronic devices.
  • Backlighting for switches and keypads.
  • General purpose visual signaling.
  • Panel mount indicator applications.

KPTR-3216ZGC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the KPTR-3216ZGC?

The typical forward voltage is 4V.

What is the package type of the KPTR-3216ZGC?

The package type is 3216 SMD (surface mount).

What is the dominant wavelength of this LED?

The dominant wavelength is 525nm.

What is the luminous intensity?

The luminous intensity is 400mcd.

What is the viewing angle?

The viewing angle is 120°.

What is the maximum forward current?

The maximum forward current is 150mA.
