| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,123 pcs
|
1123 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,123 pcs
|
1123 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
832 pcs
|
832 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle |

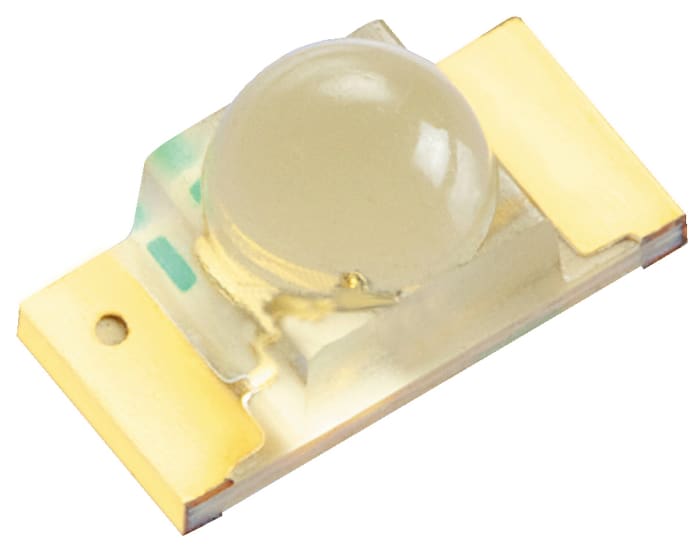

The Kingbright KPTD-3216SYCK is a Super Bright Yellow SMD Chip LED Lamp designed for backlight and indicator applications. It utilizes an AlGaInP light-emitting diode chip on a GaAs substrate.
Key electrical specifications include a typical dominant wavelength of 590nm, a spectral line half-width of 20nm, and a typical forward voltage of 2V at 20mA. The maximum power dissipation is rated at 75mW, with a maximum DC forward current of 30mA and a peak forward current of 175mA. The device operates within a temperature range of -40°C to +85°C.
The LED is housed in a 3.2mm x 1.6mm SMD package with a thickness of 1.8mm. It has a typical viewing angle of 35 degrees. The package is supplied on a reel with a standard quantity of 2000 pieces.
This component is suitable for various electronic designs requiring a compact, yellow LED indicator. Its low power consumption and specific wavelength make it ideal for signaling and illumination purposes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2V at 20mA, with a maximum of 2.5V.
It comes in a 3216 surface-mount package.
The operating temperature range is -40°C to +85°C.
The dominant wavelength is 590nm at 20mA.
The typical luminous intensity is 800mcd at 20mA.
The viewing angle is 35°.
The maximum DC forward current is 30mA.
