| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,728 pcs
|
1728 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,728 pcs
|
1728 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Country of Origin | |
| Failure Rate | |
| Forward Voltage | |
| Number of Pins | |
| Tape & Reel | |
| Viewing Angle |

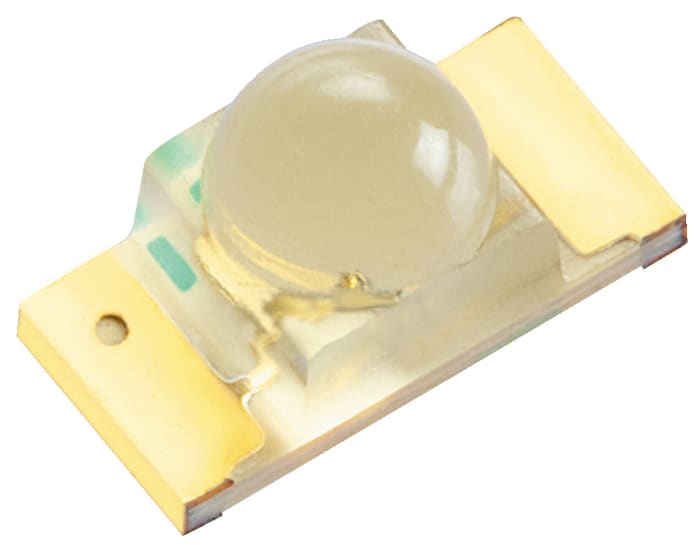

This Kingbright KPTD-3216SURC is a red light-emitting diode designed for discrete indication applications. It comes in a standard 3216 (1206) surface mount package with a clear dome lens.
The LED operates with a typical forward voltage of 1.95V and can handle a maximum forward current of 185mA. Its luminosity is rated at 1.5 cd, with a dominant wavelength of 630nm. The viewing angle is 50 degrees, providing a good balance for indicator functions.
With a maximum power dissipation of 75mW, this LED is suitable for various electronic designs. The surface mount package and tape and reel packaging make it ideal for automated assembly processes. It is also noted as RoHS3 compliant.
Key specifications include a 2-pin configuration, clear lens finish, and a clear lens color. The LED height is 1.8mm. This component is manufactured in China and is not automotive standard.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KPTD-3216SURC uses a 3216 surface-mount package.
The dominant wavelength is 630nm, producing red light.
The maximum forward current is 185mA.
The typical forward voltage is 1.95V.
The typical luminosity is 1.5 cd.
The viewing angle is 50 degrees.
The maximum power dissipation is 75mW.
