| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Forward Voltage | |
| Mounting Type | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Tape & Reel | |
| Viewing Angle | |
| Wavelength |

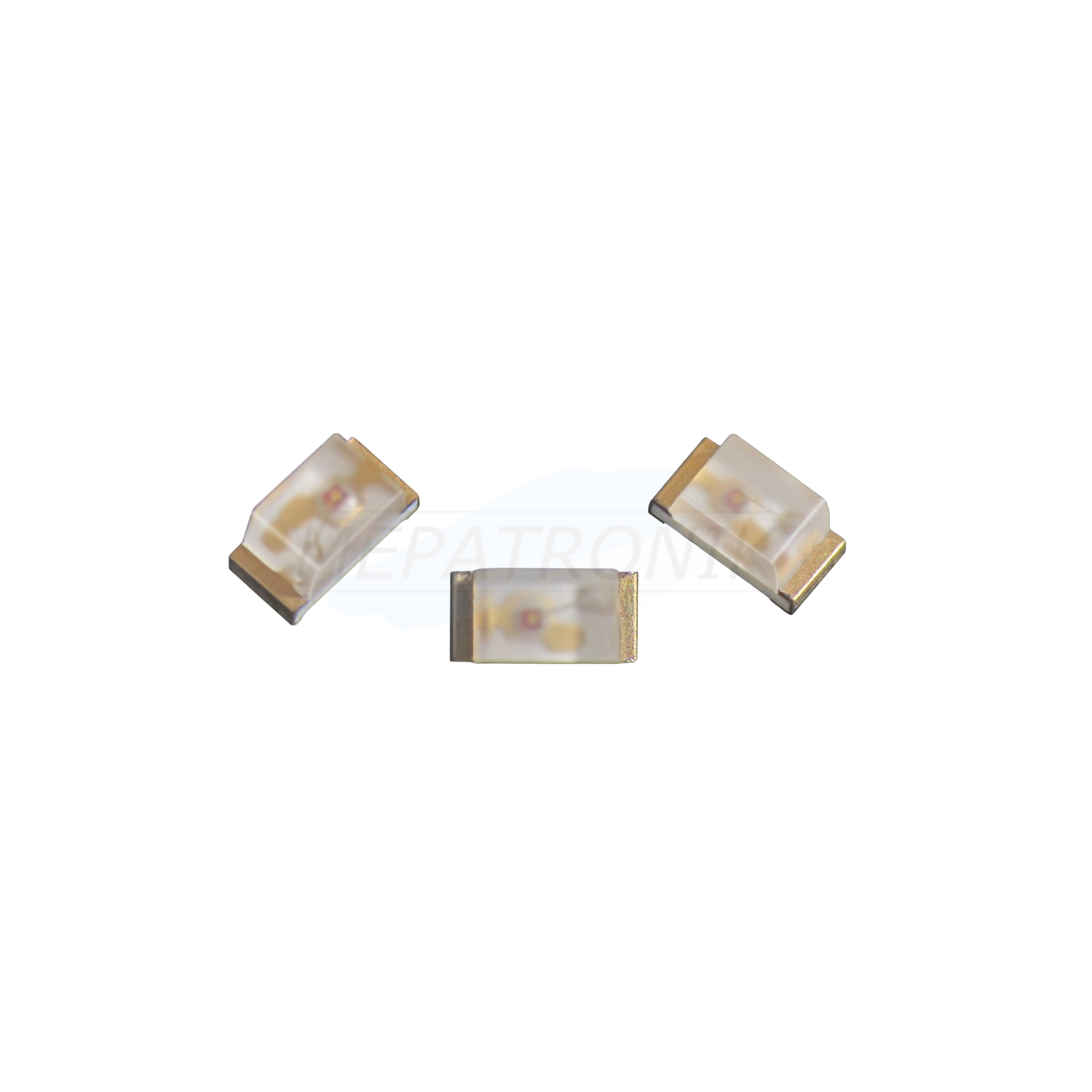

This Kingbright KPT-1608EC is a high-efficiency red SMD chip LED lamp designed for discrete indication applications. It features a water-clear lens and a compact 1.6 x 0.8 x 0.75 mm package.
The LED operates with a typical forward voltage of 2V and a maximum forward current of 30mA, providing a typical luminous intensity of 15mcd. Its wide 120° viewing angle ensures broad light distribution. The component is rated for a reverse voltage of 5V and has a low reverse current of 10µA maximum.
With a typical wavelength of 617nm, this LED is suitable for various indicator functions. It operates within a temperature range of -40°C to 85°C and has a power dissipation of 75mW at 25°C. The LED is supplied in a 2000-piece reel, suitable for surface mount assembly.
Compliance information indicates RoHS3 compliance, MSL Level 1, and REACH unaffected status. The dimensions of the LED are 1.6mm in length, 0.8mm in width, and 0.75mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KPT1608EC comes in a 1608 (0603) surface mount package.
The operating temperature range is -40°C to +85°C.
The wavelength is 617nm, which is in the red portion of the visible spectrum.
The typical forward voltage is 2V at 30mA.
The maximum forward current is 30mA.
The viewing angle is 120° at 30mA.
The luminous intensity is 15mcd at 30mA.
