| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating |

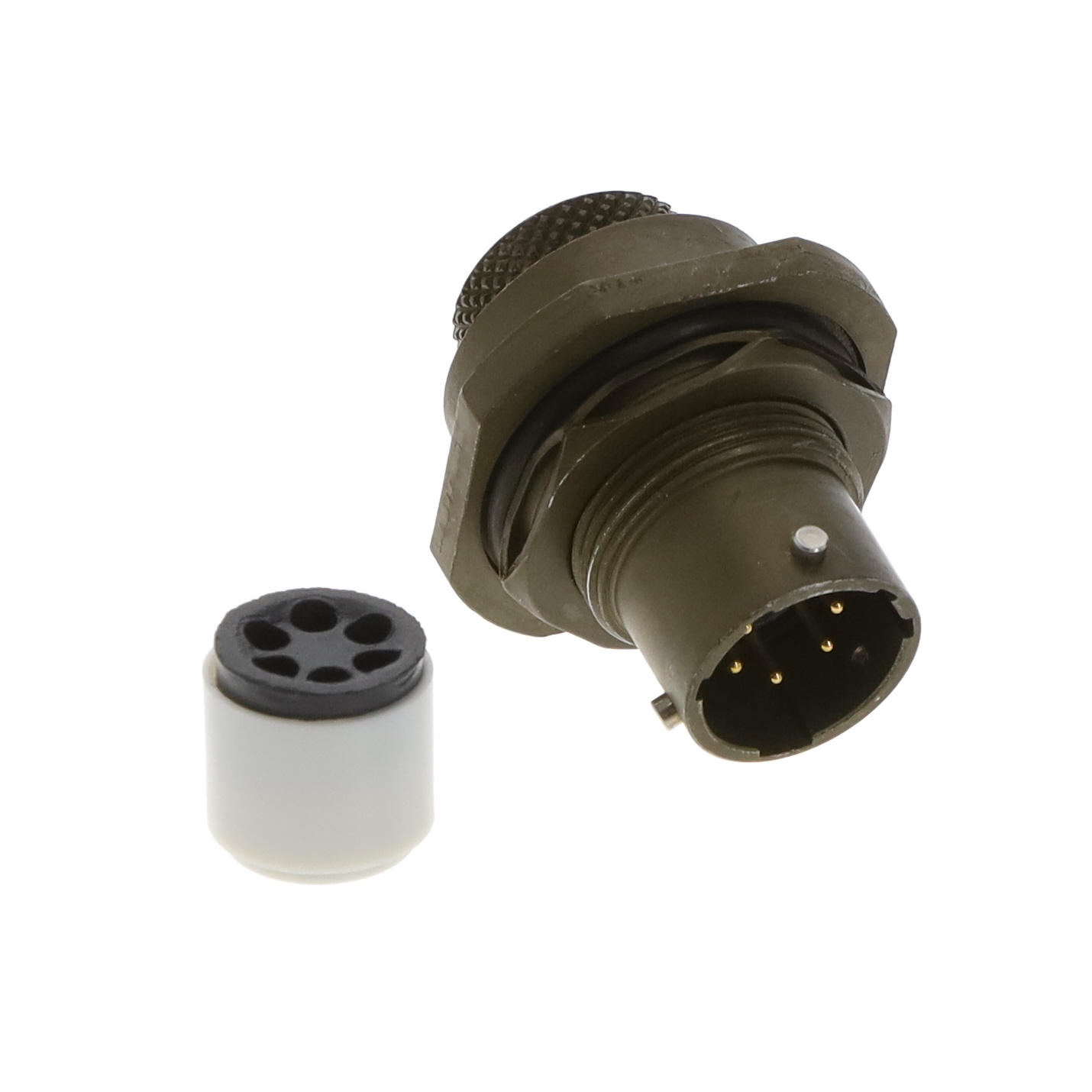

The KPT07E10-6P from ITT Cannon is a circular connector receptacle designed for reliable interconnect solutions in harsh environments. It features 6 male pin contacts with gold finish, ensuring low contact resistance and corrosion resistance. The connector is terminated via solder cup, which allows for easy wire termination.
This connector is panel mounted with a bulkhead front side nut mounting feature, providing secure installation. The shell is made of aluminum alloy with an olive drab cadmium finish, offering durability and environmental protection. The connector is rated for environment resistance, providing protection against moisture and particulate ingress.
Electrically, the connector is rated for 7.5A current and can handle up to 600VAC or 850VDC. It operates over a temperature range of -55°C to 125°C. The bayonet lock fastening type ensures quick and secure mating, while the N (Normal) orientation provides standard keying.
The KPT07E10-6P is part of ITT Cannon's KPT series, which is known for its rugged design and compatibility with industry-standard circular connector interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.79 | $44.79 |
| 4+ | $67.19 | $67.19 |
| 10+ | $39.22 | $39.22 |
| 25+ | $37.53 | $37.53 |
| 50+ | $36.31 | $36.31 |
| 100+ | $35.10 | $35.10 |
| 250+ | $33.17 | $33.17 |
| 500+ | $64.52 | $64.52 |
| 1,000+ | $63.23 | $63.23 |
| 2,000+ | $61.97 | $61.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
7.5 A.
600 VAC, 850 VDC.
Panel mount with bulkhead front side nut.
Solder cup.
Aluminum alloy with olive drab cadmium finish.
-55°C to 125°C.
