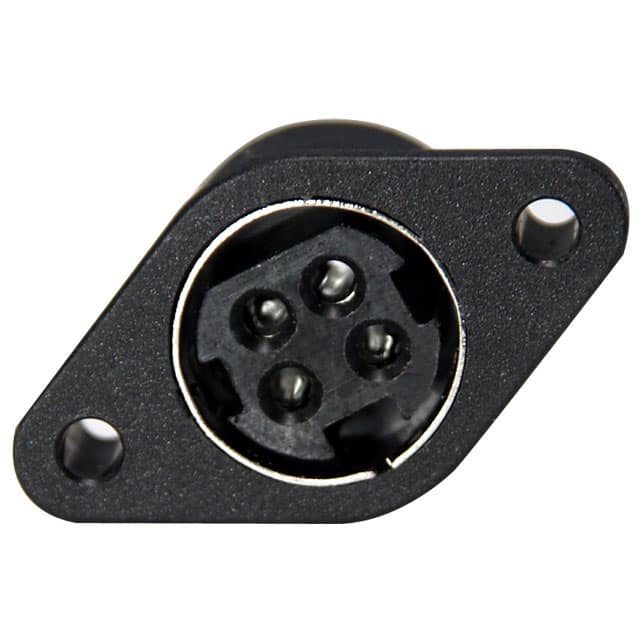

KPJX-PM-4S KPJX-PM-4S is a 4-position power DIN connector from Kycon Inc. It features a panel mount, through hole design with solder termination and tin contacts.
Mfr Part #:

KPJX-PM-4S

Available from 3 distributors
Mfr Name: Kycon Inc.
Kycon Inc.
KPJX-PM-4S is a 4-position power DIN connector from Kycon Inc. It features a panel mount, through hole design with solder termination and tin contacts.
✓ Total Stock: 203 pcs
$ Price Range: $1.40 - $2.45

KPJX-PM-4S Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KPJX-PM-4S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Current Rating (Amps)
Fastening Type
Features
Lead Style
Material Flammability Rating
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Material
Shell Size
Shielding
Termination
Termination Style
Voltage Rating
View Similar Products (0)

KPJX-PM-4S Description

Short technical summary and product information.

The KPJX-PM-4S is a power DIN connector from Kycon Inc. It is a jack, female sockets connector with 4 power positions. The shell is made of PBT plastic with a Power DIN size. It features a panel mount, through hole mounting with a flange and snap-in fastening. Termination is solder. The contacts have a tin finish. The connector is unshielded and includes a ground feature. It is rated for 48V and 7.5A. Operating temperature range is -40°C to 75°C. The housing material has a UL94 V-0 flammability rating. Color is black. This connector is suitable for power supply applications requiring a compact, keyed connector.

KPJX-PM-4S Quick Information

Product Type: Power DIN Connector
Canonical Name: Connector Jack Female 4 Position Tin Solder
Subcategory: Circular Connector Assemblies

KPJX-PM-4S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

KPJX-PM-4S Estimated Pricing

Qty Low High
1+ $2.45 $2.45
10+ $2.08 $2.08
25+ $1.95 $1.95
50+ $1.86 $1.86
200+ $1.68 $1.68
400+ $1.60 $1.60
600+ $1.56 $1.56
1,000+ $1.50 $1.50
2,600+ $1.40 $1.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

KPJX-PM-4S Features

  • 4-position power DIN connector.
  • Rated for 48V and 7.5A.
  • Panel mount with flange.
  • Tin-plated contacts.
  • Solder termination.

KPJX-PM-4S Applications

  • Power supply connections in industrial equipment.
  • Used in panel-mount power distribution.
  • Suitable for compact power interfaces.
  • Provides keyed mating for correct orientation.
  • Ideal for applications requiring a ground connection.

KPJX-PM-4S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the KPJX-PM-4S have?

It has 4 positions, all for power.

What is the current rating of the KPJX-PM-4S?

It is rated for 7.5 A.

What is the voltage rating of the KPJX-PM-4S?

It is rated for 48 V DC.

What is the mounting type of the KPJX-PM-4S?

It is panel mount with through hole solder termination and a flange.

What is the operating temperature range?

It operates from -40°C to 75°C.

What is the contact finish on the KPJX-PM-4S?

The contacts have a tin finish.

Is the KPJX-PM-4S shielded?

No, it is unshielded.
