| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,403 pcs
|
1403 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

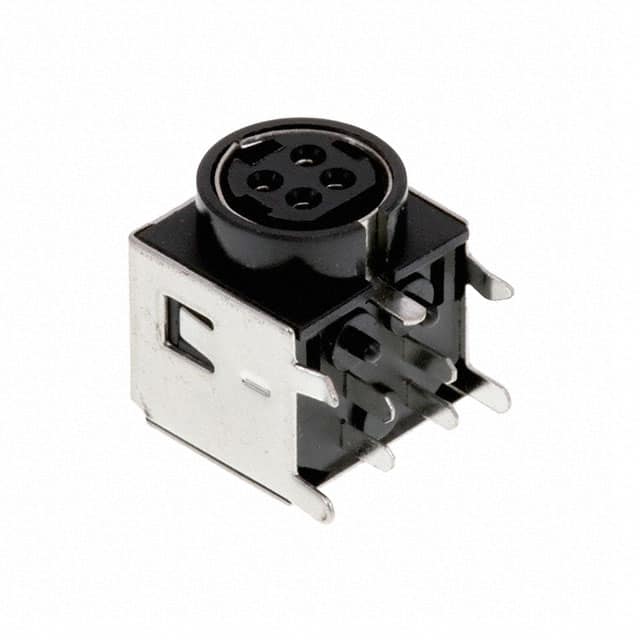

The Kycon KPJX-4S-S is a 4-position Power DIN jack from the KPJX series, designed for DC power applications in portable digital equipment such as laptop computers and power supplies. It features a snap-and-lock mechanism that helps prevent accidental disconnects.
Electrical specifications include a maximum contact current rating of 7.5A per pin at 48VDC, insulation resistance of 50 MOhm minimum at 250VDC, dielectric withstanding voltage of 500VAC for 1 minute, and contact resistance of 30 mOhm maximum. The connector is shielded and uses tin-plated contacts.
Mechanically, the jack offers through-hole right-angle mounting with solder termination, a snap-in fastening type, and a keyed orientation. The shell is made of PBT plastic with UL94 V-0 flammability rating. It includes board guide and board lock features. The operating temperature range is -40°C to 75°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.77 | $1.77 |
| 10+ | $1.50 | $1.50 |
| 25+ | $1.41 | $1.41 |
| 50+ | $1.34 | $1.34 |
| 170+ | $1.23 | $1.23 |
| 340+ | $1.17 | $1.17 |
| 510+ | $1.14 | $1.14 |
| 1,020+ | $1.08 | $1.08 |
| 2,550+ | $1.02 | $1.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum contact current rating is 7.5A per pin.
The maximum contact voltage rating is 48VDC.
It uses through-hole right-angle mounting with solder termination.
It has 4 power positions.
Yes, it is shielded.
The operating temperature range is -40°C to 75°C.
