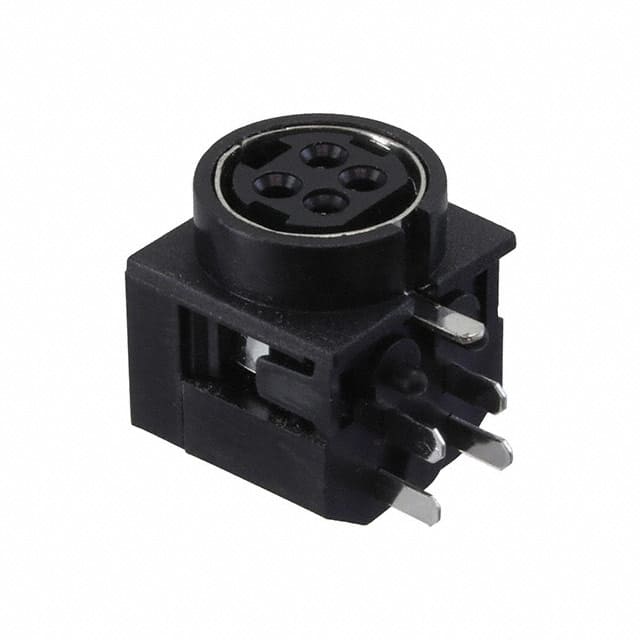

The KPJX-4S is a 4-position Power DIN connector from Kycon Inc., designed as a snap and lock PCB mount receptacle. It features female sockets (socket contacts) with tin plating, and is configured for through hole, right angle mounting. The connector is part of the KPJX series, which is intended for DC power applications in laptop computers, power supplies, and other portable digital equipment.
Key electrical specifications include a current rating of 7.5A per pin at 48VDC, insulation resistance of 50 MΩ minimum at 250VDC, dielectric withstanding voltage of 500VAC for 1 minute, and contact resistance of 30 mΩ maximum. The connector is unshielded and has a keyed orientation to prevent misalignment.
The housing is made of Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring robust performance. The operating temperature range is -40°C to 75°C. The snap-in fastening type helps prevent accidental disconnects, and the board guide feature aids in alignment during assembly. The connector is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.60 | $1.60 |
| 10+ | $1.36 | $1.36 |
| 25+ | $1.27 | $1.27 |
| 50+ | $1.21 | $1.21 |
| 190+ | $1.10 | $1.10 |
| 380+ | $1.05 | $1.05 |
| 570+ | $1.02 | $1.02 |
| 1,140+ | $0.97 | $0.97 |
| 2,660+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KPJX-4S has 4 positions, all used for power.
The current rating is 7.5 A per pin.
The voltage rating is 48 VDC.
The mounting type is through hole, right angle.
The operating temperature range is -40°C to 75°C.
The durability is 1000 mating cycles.
The contact finish is tin.
