| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,507 pcs
|
2507 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Forward Voltage | |
| Number of LEDs | |
| Number of Pins | |
| Viewing Angle |

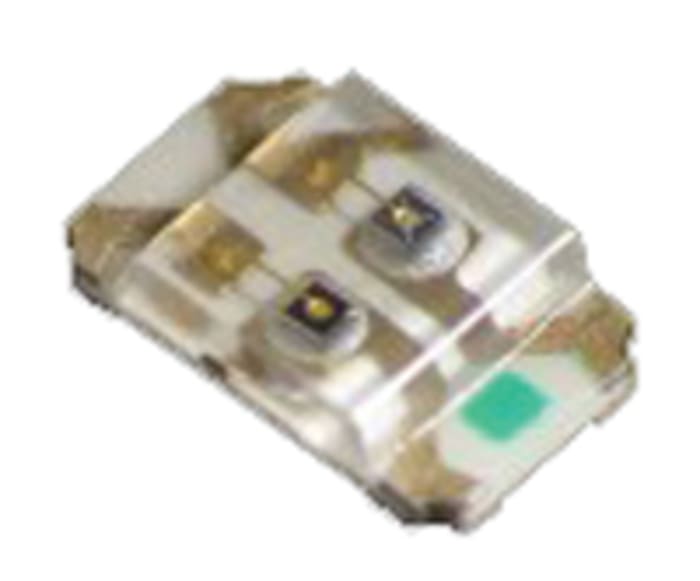

The Kingbright KPHBM-2012CGKSYKC is a surface-mount LED designed for indicator and backlight applications. It features a 2012 (0805) package measuring 2.0 x 1.25 x 0.4 mm.
This bi-color LED emits Green and Yellow light with dominant wavelengths of 570nm and 590nm, respectively. It operates with a typical forward voltage of 2.5V and can handle a maximum forward current of 30mA, with a maximum power dissipation of 75mW. The LED has a wide viewing angle of 120° and a clear, rectangular lens.
With 4 pins and a clear lens finish, this LED is suitable for various electronic designs. It is supplied in tape and reel packaging, ideal for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the KPHBM-2012CGKSYKC LED is 2.5V.
The maximum forward current for the KPHBM-2012CGKSYKC LED is 30mA.
The viewing angle of the KPHBM-2012CGKSYKC LED is 120°.
The dominant wavelengths for the KPHBM-2012CGKSYKC LED are 570nm for green and 590nm for yellow.
The KPHBM-2012CGKSYKC LED is supplied in a 2012 (0805) package.
