| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,563 pcs
|
1563 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Emitting Color | |
| Halogen Free | |
| Lens Type | |
| Mounting Type | |
| Operating Temperature | |
| Viewing Angle |

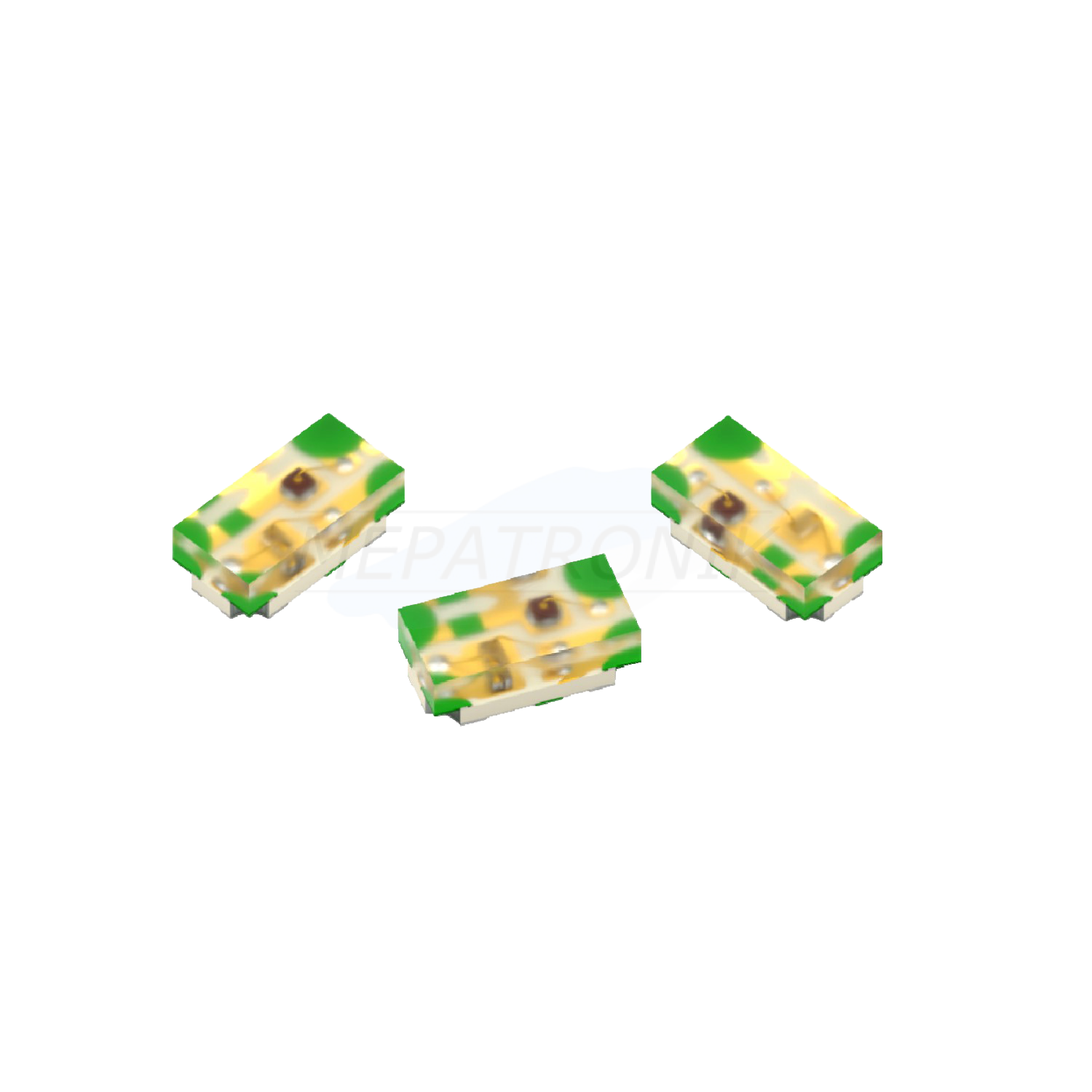

This Bi-Color Surface Mount LED from Kingbright, model KPHB-1608ZGSURKC-GX, offers both Green and Hyper Red light emission from a single package. The LED is constructed using InGaN for Green and AlGaInP for Hyper Red, housed in a water-clear lens.
Key electrical characteristics include a typical luminous intensity of 400 mcd for Green and 250 mcd for Hyper Red at 20mA, with a wide viewing angle of 130°. The dominant wavelengths are 525 nm for Green and 630 nm for Hyper Red. The LED is compatible with reflow soldering and features tinned pads for improved solderability.
The device comes in a compact 1.6 x 0.8 x 0.5 mm (0603) SMD package, making it suitable for space-constrained applications. It operates within a temperature range of -40°C to 85°C and is supplied in reels of 2000 pieces. The LED is halogen-free and RoHS3 compliant.
Applications include backlighting, status indicators, home and smart appliances, wearable and portable devices, and healthcare applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 V typical at 20 mA.
1.95 V typical at 20 mA.
0603 SMD.
-40 to 85 °C.
130°.
525 nm (green) and 630 nm (hyper red).
400 mcd typical for green and 200 mcd minimum for hyper red at 20 mA.
