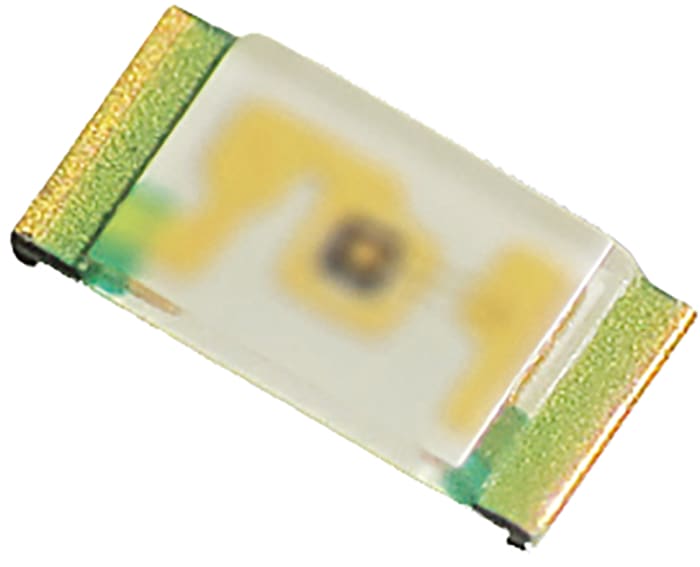

KPG1-1608SEC-E-TT The Kingbright KPG1-1608SEC-E-TT is a red LED designed for surface mount applications. It operates at a 2.4V forward voltage and has a 120° viewing angle.
Mfr Part #:

KPG1-1608SEC-E-TT

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright KPG1-1608SEC-E-TT is a red LED designed for surface mount applications. It operates at a 2.4V forward voltage and has a 120° viewing angle.
✓ Total Stock: 975 pcs
$ Price Range: $0.07

KPG1-1608SEC-E-TT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
975 pcs
On Request
975 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KPG1-1608SEC-E-TT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Forward Current
Forward Voltage
Halogen Free
Lead Style
Mounting Type
Number of LEDs
Number of Pins
SVHC Present
Storage Temperature
Tape & Reel
Viewing Angle
View Similar Products (0)

KPG1-1608SEC-E-TT Description

Short technical summary and product information.

This Kingbright KPG1-1608SEC-E-TT is a red light-emitting diode (LED) suitable for discrete indication applications. It comes in a compact 1608 (0603) surface-mount package, measuring 1.6 x 0.8 x 0.2mm.



The LED features a typical forward voltage of 2.4V and a forward current of 25mA. It emits red light with a dominant wavelength of 624nm and offers a wide viewing angle of 120°. The luminous intensity is rated at 75 mcd.



Designed for automated assembly, this component is ideal for various electronic designs requiring visual indication. Its small footprint makes it suitable for space-constrained applications.

KPG1-1608SEC-E-TT Quick Information

Product Type: LED
Series: KPG1-1608
Canonical Name: Kingbright KPG1-1608SEC-E-TT Red LED
Subcategory: Discrete LED

KPG1-1608SEC-E-TT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

KPG1-1608SEC-E-TT Estimated Pricing

Qty Low High
1+ $0.07 $0.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

KPG1-1608SEC-E-TT Features

  • Red LED in 1608 (0603) SMD package.
  • Typical forward voltage is 2.4V.
  • Wide 120° viewing angle.
  • Luminous intensity of 75 mcd.
  • Compact dimensions of 1.6 x 0.8 x 0.2mm.

KPG1-1608SEC-E-TT Applications

  • Status indicator in consumer electronics.
  • Backlighting for small displays.
  • Push button illumination for control panels.
  • Visual signaling in portable devices.
  • Panel mount indicator on PCBs.

KPG1-1608SEC-E-TT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the Kingbright KPG1-1608SEC-E-TT LED?

The typical forward voltage is 2.4V.

What package type is the Kingbright KPG1-1608SEC-E-TT LED?

It is supplied in a 1608 (0603) package.

What is the viewing angle of this LED?

The viewing angle is 120°.

What is the luminous intensity of the KPG1-1608SEC-E-TT?

The luminous intensity is 75 mcd.

What are the dimensions of the Kingbright KPG1-1608SEC-E-TT LED?

The dimensions are 1.6 x 0.8 x 0.2mm.
