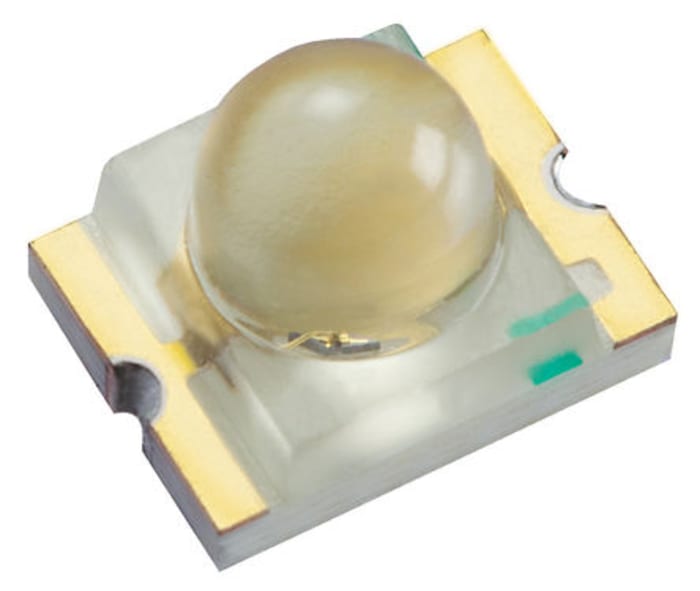

KPD-3224CGCK The Kingbright KPD-3224CGCK is a green LED in a 3224 surface mount package. It operates at a 2.5V forward voltage with a maximum forward current of 150mA.
Mfr Part #:

KPD-3224CGCK

Available from 2 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright KPD-3224CGCK is a green LED in a 3224 surface mount package. It operates at a 2.5V forward voltage with a maximum forward current of 150mA.
✓ Total Stock: 2,235 pcs
$ Price Range: $0.99

KPD-3224CGCK Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,119 pcs
On Request
1119 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,116 pcs
On Request
1116 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KPD-3224CGCK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Dimensions
Failure Rate
Forward Voltage
Number of Pins
Product Type
SVHC Present
Viewing Angle
View Similar Products (0)

KPD-3224CGCK Description

Short technical summary and product information.

This Kingbright KPD-3224CGCK is a green LED designed for surface mounting. It comes in a standard 3224 (1210) package with dimensions of 3.2 x 2.4 mm.



The LED features a dome lens shape and clear lens color, providing a viewing angle of 20 degrees. Its electrical characteristics include a forward voltage of 2.5V and a maximum forward current of 150mA. The maximum power dissipation is rated at 75mW.



With a dominant wavelength of 570nm and luminosity of 600 mcd, this LED is suitable for various applications including backlighting and indicators. It is supplied in tape and reel packaging with a standard package quantity of 50.



The product is manufactured in China and adheres to RoHS standards.

KPD-3224CGCK Quick Information

Product Type: LED
Series: KPD-3224
Canonical Name: Kingbright KPD-3224CGCK Green SMT Chip LED
Subcategory: Discrete LED

KPD-3224CGCK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KPD-3224CGCK Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

KPD-3224CGCK Features

  • Green LED in 3224 package
  • 2.5V forward voltage
  • 150mA maximum forward current
  • Surface mount type
  • Tape and reel packaging

KPD-3224CGCK Applications

  • Ideal for status indication in electronic devices.
  • Used in backlighting for small displays.
  • Suitable for surface mount assembly processes.
  • Applicable in consumer electronics and appliances.
  • Can be used in light pipe applications.

KPD-3224CGCK FAQs

7 frequently asked questions generated from this part’s specifications.
What is the color of the KPD-3224CGCK LED?

The LED emits green light.

What is the forward current rating of the KPD-3224CGCK?

The maximum forward current is 150 mA.

What is the forward voltage of the KPD-3224CGCK?

The forward voltage is 2.5 V.

What is the viewing angle of the KPD-3224CGCK?

The viewing angle is 20 degrees.

What is the luminosity of the KPD-3224CGCK?

The LED has a luminosity of 600 mcd.

What is the dominant wavelength of the KPD-3224CGCK?

The dominant wavelength is 570 nm.

What is the package type of the KPD-3224CGCK?

The package is SMT Chip LED 3224 (1210).
