| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
853 pcs
|
853 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Current | |
| Reverse Voltage | |
| Tape & Reel | |
| Termination Style | |
| Viewing Angle |

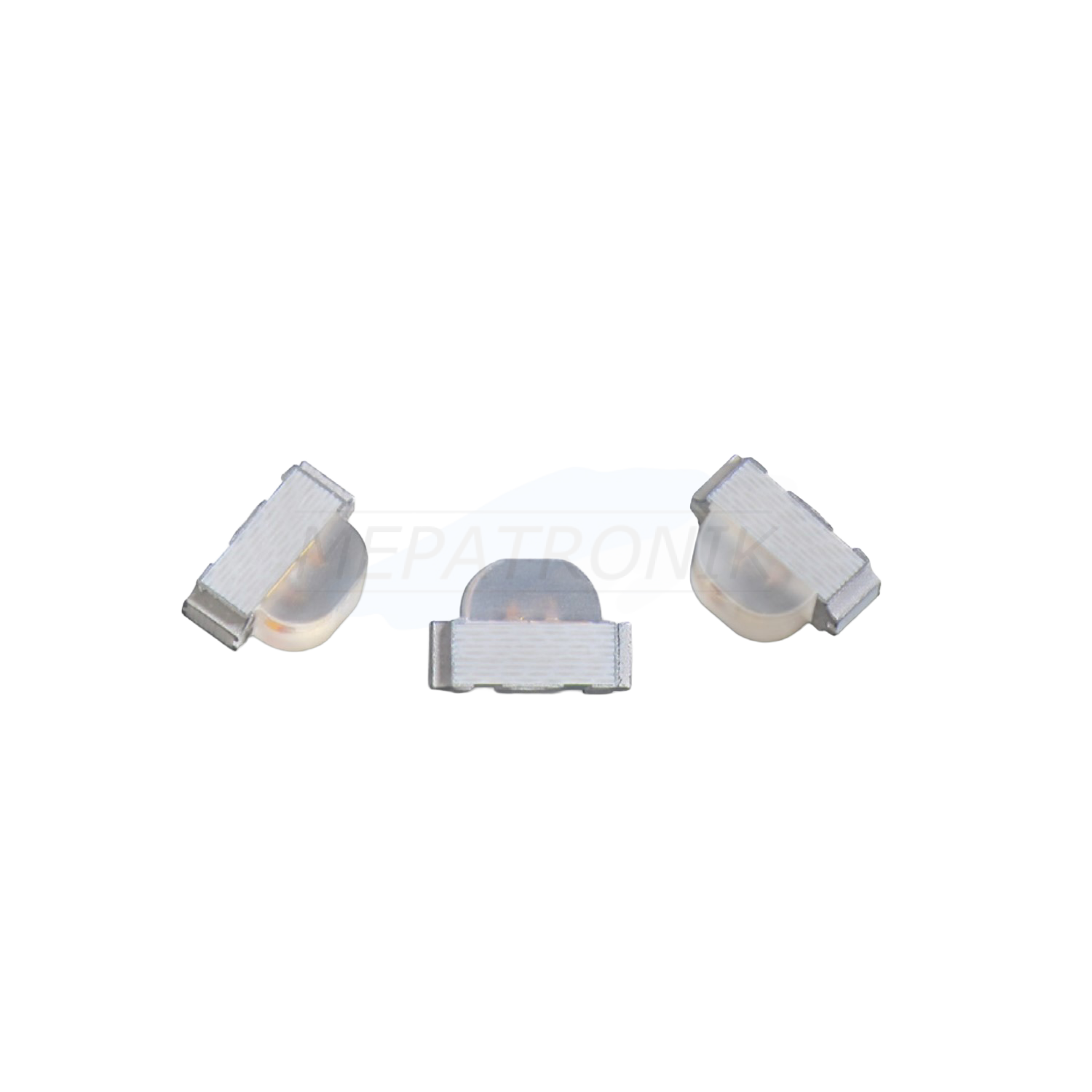

This Kingbright KPBA-3010YSGC is a compact SMD chip LED lamp designed for surface mount applications. It features a right-angle housing with dimensions of 3x1x2mm, making it suitable for space-constrained designs. The LED is bicolor, capable of emitting both yellow and super bright green light.
Key electrical characteristics include a typical forward voltage of 2.1V for yellow and 2.2V for green, with a maximum continuous forward current of 30mA (yellow) and 25mA (green). It has a maximum reverse voltage rating of 5V and a peak forward current of 140mA. The luminous intensity is typically 8mcd for yellow and 15mcd for green, with a wide 140° viewing angle.
The operating temperature range for this LED is from -40°C to 85°C. It is supplied in a 2000-piece reel, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KPBA-3010YSGC LED emits both yellow and super bright green light.
The typical forward voltage is 2.1V for the yellow LED and 2.2V for the green LED.
The maximum reverse voltage is 5V.
The viewing angle is 140 degrees.
The operating temperature range is -40°C to 85°C.
It is a 3x1x2mm SMD chip LED lamp with a right-angle package.
