| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,783 pcs
|
1783 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Dimensions | |
| LED Color | |
| Lens Type | |
| Material | |
| Mounting Type | |
| Number of LEDs | |
| Operating Temperature | |
| Reverse Current | |
| Reverse Voltage | |
| Viewing Angle |

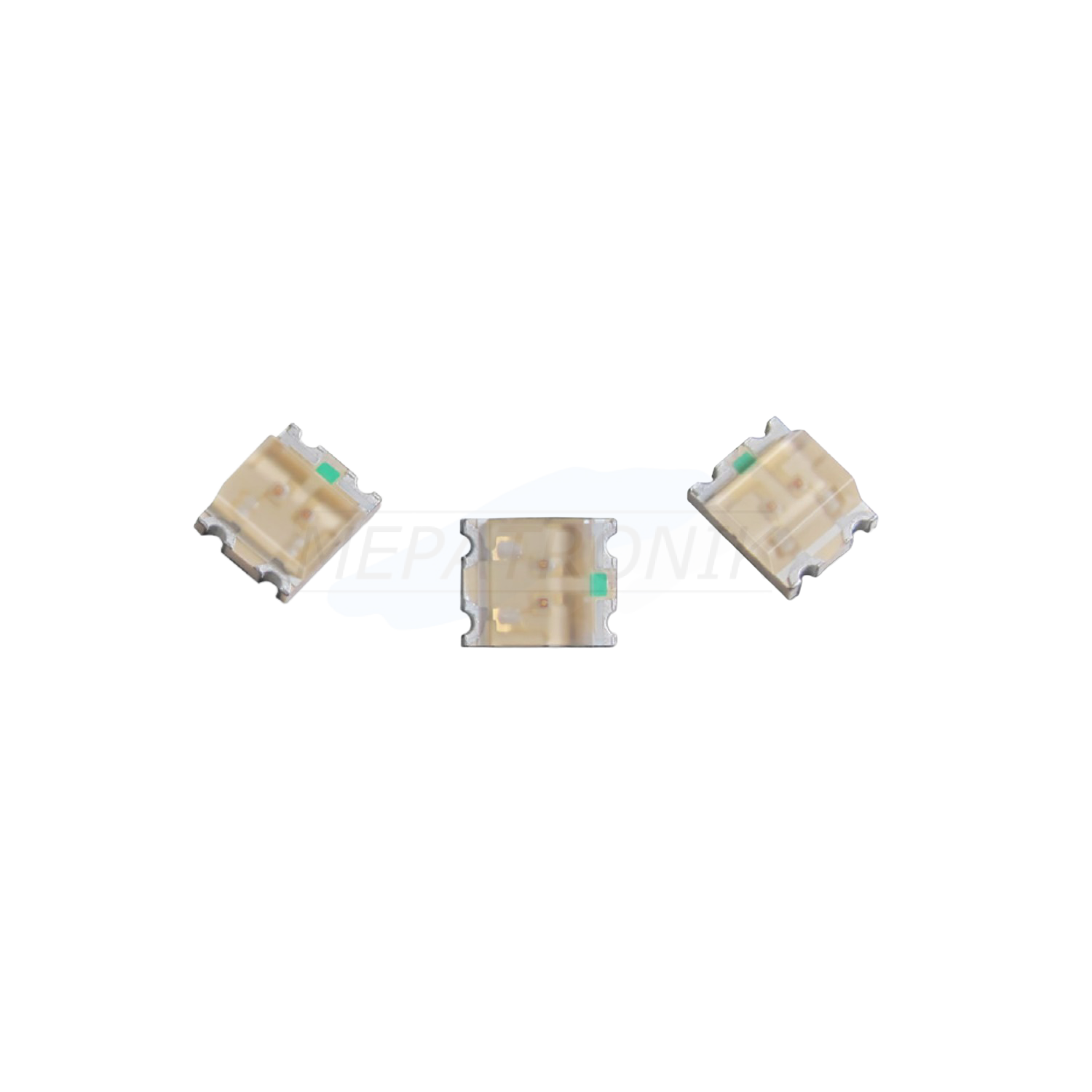

This Kingbright KPB3025ESGC is a surface-mount (SMT) chip LED designed for discrete indication applications. It features a dual-color output, emitting both high-efficiency red and super-bright green light from a single package.
The LED has a water-clear lens and measures 3x2.5x1.1mm. It provides a wide 120° viewing angle, making it suitable for various display and indicator needs. The typical forward voltage is 2V for red and 2.2V for green, with a typical forward current of 30mA and 25mA respectively.
Key electrical characteristics include a maximum reverse voltage of 5V and a maximum reverse current of 10µA. The peak forward current is rated at 160mA for red and 140mA for green at Ta=25°C. The luminous intensity is typically 15mcd. The operating temperature range is from -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2V for red and 2.2V for green, with typical forward currents of 30mA for red and 25mA for green.
The operating temperature range for the KPB3025ESGC is -40°C to 85°C.
The typical viewing angle for this LED is 120 degrees.
The dimensions of the LED are 3 x 2.5 x 1.1 mm.
The standard package quantity is 2000 pieces.
