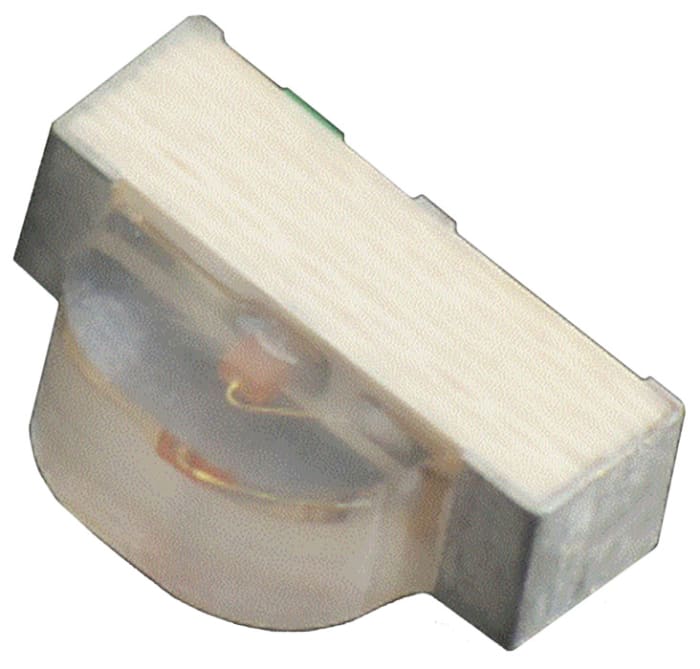

KPA-3010 The Kingbright KPA-3010SECK is an orange, side-looking surface mount LED. It features a 195mA maximum forward current and a 120° viewing angle.
Mfr Part #:

KPA-3010

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright KPA-3010SECK is an orange, side-looking surface mount LED. It features a 195mA maximum forward current and a 120° viewing angle.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.99

KPA-3010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KPA-3010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Failure Rate
Forward Voltage
Number of Pins
Product Type
Viewing Angle
View Similar Products (0)

KPA-3010 Description

Short technical summary and product information.

This Kingbright KPA-3010SECK is an orange LED designed for surface mounting. It belongs to the KPA-3010 series and is packaged in tape and reel for automated assembly.



Key electrical specifications include a maximum forward current of 195mA and a typical forward voltage of 2.5V. The LED offers a luminosity of 250 mcd and a dominant wavelength of 601nm. Its viewing angle is 120°, providing a wide light distribution.



The mechanical characteristics include a dome-shaped lens with a clear finish and color. The lens dimensions are 2 x 2 mm. This component is suitable for applications requiring indicators or backlighting where a side-looking light source is needed.



Compliance information indicates RoHS3 compliance and an MSL rating of 1. The LED is manufactured in China.

KPA-3010 Quick Information

Product Type: LED
Series: KPA-3010
Canonical Name: Kingbright KPA-3010SECK Orange Side-Looking SMT LED
Subcategory: Side-Looking LED

KPA-3010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KPA-3010 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

KPA-3010 Features

  • Orange side-looking surface mount LED.
  • 195mA maximum forward current.
  • 2.5V typical forward voltage.
  • 120 degree viewing angle.
  • Tape and reel packaging.

KPA-3010 Applications

  • Used in electronic indicator lights
  • Suitable for backlighting displays
  • Ideal for automotive lighting
  • Applied in general illumination

KPA-3010 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the Kingbright KPA-3010SECK LED?

The typical forward voltage is 2.5V.

What is the maximum forward current for this LED?

The maximum forward current is 195mA.

What is the viewing angle of the KPA-3010SECK LED?

The viewing angle is 120 degrees.

What is the dominant wavelength of the orange LED?

The dominant wavelength is 601nm.

What type of package does the Kingbright KPA-3010SECK use?

It is a SMT Right Angle package.

How is the Kingbright KPA-3010SECK LED packaged?

It is supplied on Tape & Reel.
