| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,415 pcs
|
5415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Style | |
| Pressure Type | |
| Termination Style | |
| Voltage |

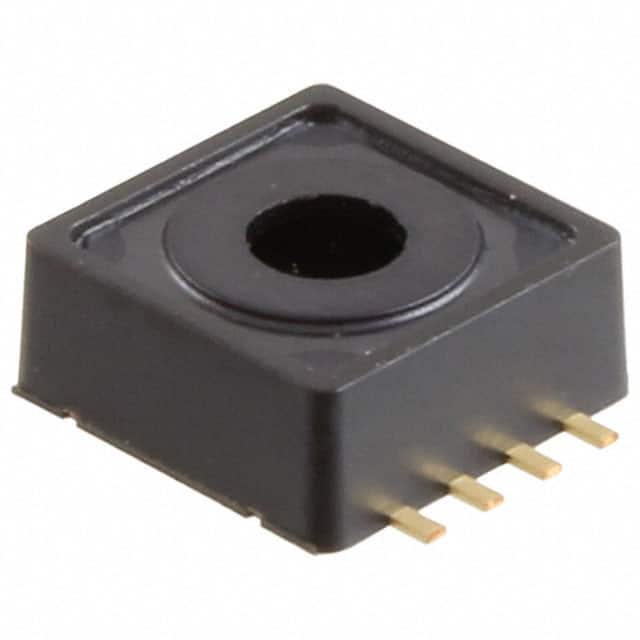

The Infineon Technologies KP235XTMA1 is an analog absolute pressure sensor IC. It operates within a voltage range of 4.5V to 5.5V and provides an output voltage from 0.5V to 4.5V. This sensor is designed for board mounting and features a surface mount package.
With an operating pressure range of 5.8 PSI to 16.68 PSI (40kPa to 115kPa) and a maximum pressure rating of 21.76 PSI (150kPa), the KP235XTMA1 offers an accuracy of ±0.348 PSI (±2.4kPa). It operates reliably within a temperature range of -40°C to 125°C. The sensor has amplified output and is temperature compensated, making it suitable for various applications requiring precise pressure measurement.
The component is housed in an 8-SMD Module package with SMD (SMT) Tab termination. It features no port, simplifying integration into systems. The RoHS 3 compliance and MSL 1 rating indicate standard handling and environmental considerations for electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.47 | $5.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 5.8 PSI to 16.68 PSI (40kPa to 115kPa).
The sensor provides an analog voltage output ranging from 0.5V to 4.5V.
The KP235XTMA1 operates within a temperature range of -40°C to 125°C.
The sensor requires an operating voltage between 4.5V and 5.5V.
The sensor is designed for surface mounting.
