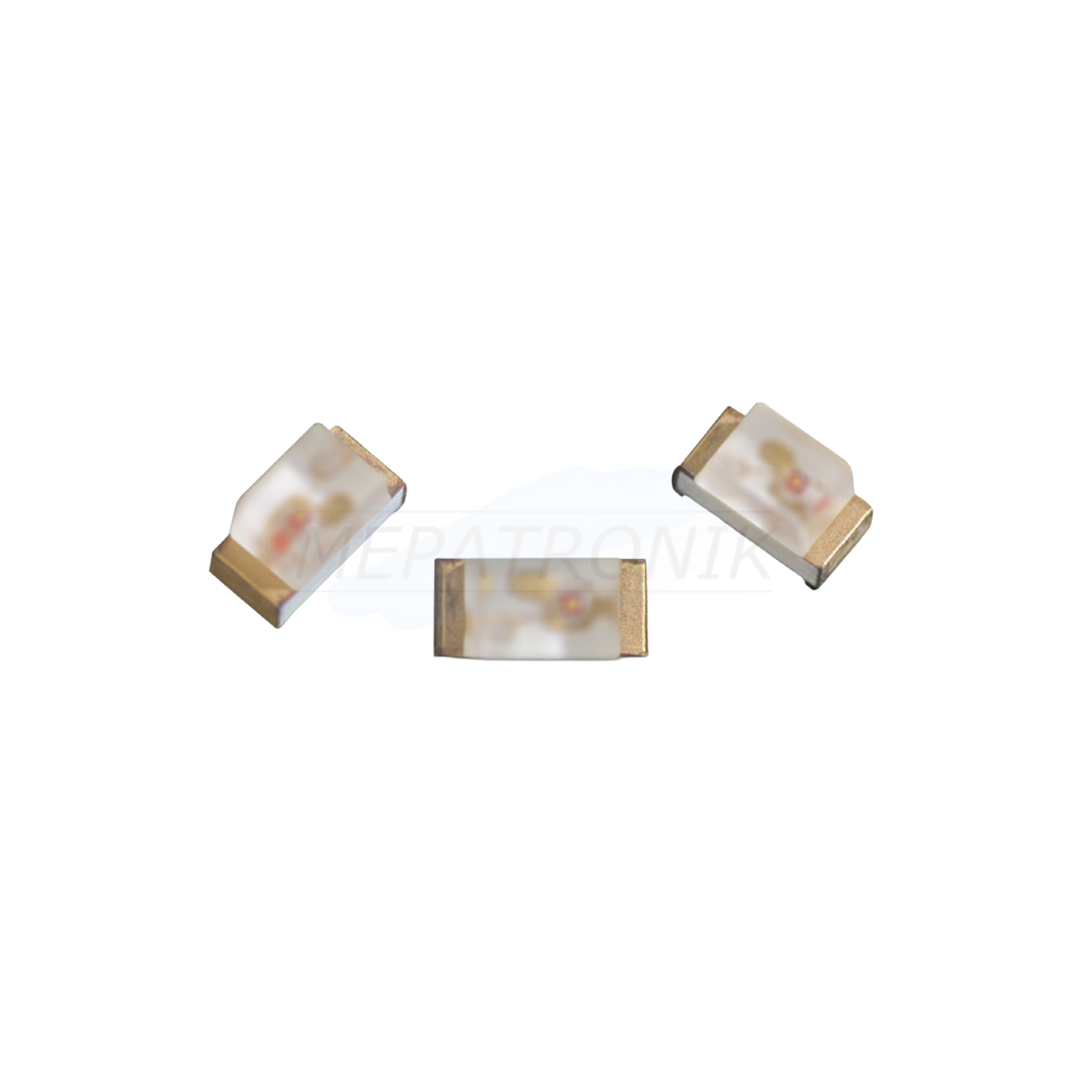

KP1608YC This Kingbright KP-1608YC is a yellow SMT LED with a water-clear lens. It features a 120° viewing angle and operates at a forward voltage of 2.1V.
Mfr Part #:

KP1608YC

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
This Kingbright KP-1608YC is a yellow SMT LED with a water-clear lens. It features a 120° viewing angle and operates at a forward voltage of 2.1V.
✓ Total Stock: 660 pcs

KP1608YC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
660 pcs
On Request
660 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KP1608YC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Dimensions
Forward Voltage
Lens Type
Material
Mounting Type
Number of LEDs
Operating Temperature
Package / Case
Power Dissipation
Reverse Current
Reverse Voltage
Tape & Reel
Viewing Angle
Wavelength
View Similar Products (0)

KP1608YC Description

Short technical summary and product information.

The Kingbright KP-1608YC is a compact SMT LED designed for discrete indication applications. It emits yellow light with a peak wavelength of 588 nm and a luminous intensity of 8 mcd. The LED has a wide 120° viewing angle, making it suitable for various display and signaling purposes.



Constructed with GaAsP/GaP material and a water-clear lens, this component measures 1.6 x 0.8 x 1.1 mm and comes in an 0603 package. It operates within a temperature range of -40°C to 85°C and has a maximum power dissipation of 75 mW at 25°C. The forward voltage is typically 2.1V, with a maximum forward current of 30mA and a nominal forward current of 140mA. The reverse voltage is rated at 5V, with a maximum reverse current of 10 µA.



This LED is supplied on tape and reel, with a standard package quantity of 2000 pieces. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

KP1608YC Quick Information

Product Type: SMT LED
Canonical Name: Kingbright KP-1608YC Yellow SMT LED
Subcategory: Discrete LED

KP1608YC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KP1608YC Features

  • Yellow SMT LED in 0603 package.
  • Water-clear lens for bright illumination.
  • Wide 120-degree viewing angle.
  • Typical forward voltage of 2.1V.
  • RoHS3 compliant for environmental standards.

KP1608YC Applications

  • Ideal for status indication lights.
  • Suitable for panel and equipment indicators.
  • Used in electronic control interfaces.
  • Effective for signal and warning lights.

KP1608YC FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the Kingbright KP-1608YC LED?

The typical forward voltage for the Kingbright KP-1608YC LED is 2.1 V.

What is the operating temperature range for this LED?

The operating temperature range for the Kingbright KP-1608YC LED is -40°C to 85°C.

What package type is the KP-1608YC LED supplied in?

The Kingbright KP-1608YC LED is supplied in an 0603 package.

What is the viewing angle of the KP-1608YC LED?

The viewing angle of the Kingbright KP-1608YC LED is 120 degrees.

What is the peak wavelength of the yellow light emitted by this LED?

The peak wavelength for the yellow light emitted by the Kingbright KP-1608YC LED is 588 nm.
