| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,490 pcs
|
1490 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Dielectric Withstanding Voltage | |
| Ejector Side | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Rated Current | |
| Rated Voltage | |
| Storage Temperature | |
| Termination Style |

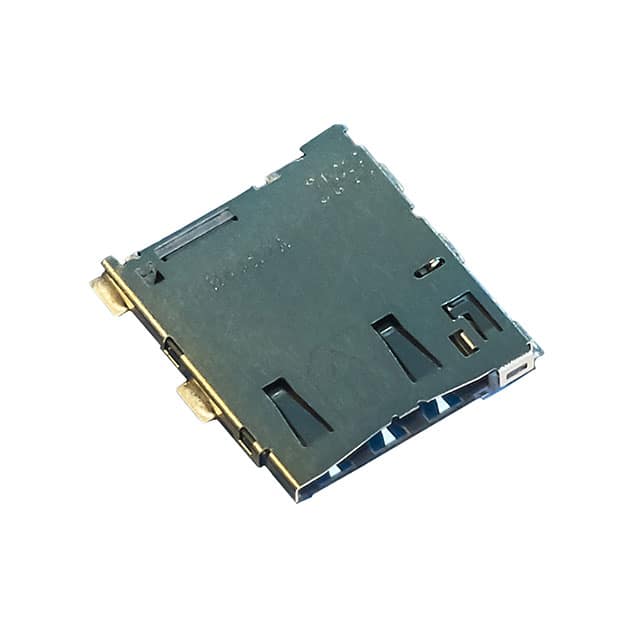

The Hirose KP13B-SF-PEJ(800) is a Nano SIM card connector designed for surface mount applications. It features 7 positions (6+1) with a right angle orientation and a push in/push out ejection mechanism. The connector includes an integrated switch for card detection.
Electrical ratings include a maximum current of 0.5A and a voltage rating of 10V AC. Contact resistance is 100mΩ maximum initially, and insulation resistance is 1000MΩ minimum. The connector has a dielectric withstanding voltage of 500Vrms AC.
Mechanical durability is rated for 5,000 insertion/withdrawal cycles. Insertion force ranges from 3 to 7N. The operating temperature range is -40°C to 85°C. The connector is suitable for use in mobile devices, IoT modules, and other compact electronic products. Gold plating on contacts ensures reliable performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.78 | $1.78 |
| 25+ | $1.70 | $1.70 |
| 50+ | $1.67 | $1.67 |
| 100+ | $1.59 | $1.59 |
| 250+ | $1.44 | $1.44 |
| 500+ | $1.33 | $1.33 |
| 1,500+ | $1.25 | $1.25 |
| 3,000+ | $1.19 | $1.19 |
| 4,500+ | $1.16 | $1.16 |
| 7,500+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions (6 + 1).
0.5A.
10V AC.
Surface mount, right angle.
-40°C to 85°C.
3 to 7N.
5,000 cycles.
