| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Forward Current | |
| Forward Voltage | |
| Height | |
| LED Color | |
| Lead Style | |
| Lens Color | |
| Mounting Type | |
| Number of Pins | |
| Power Dissipation | |
| Viewing Angle | |
| Wavelength |

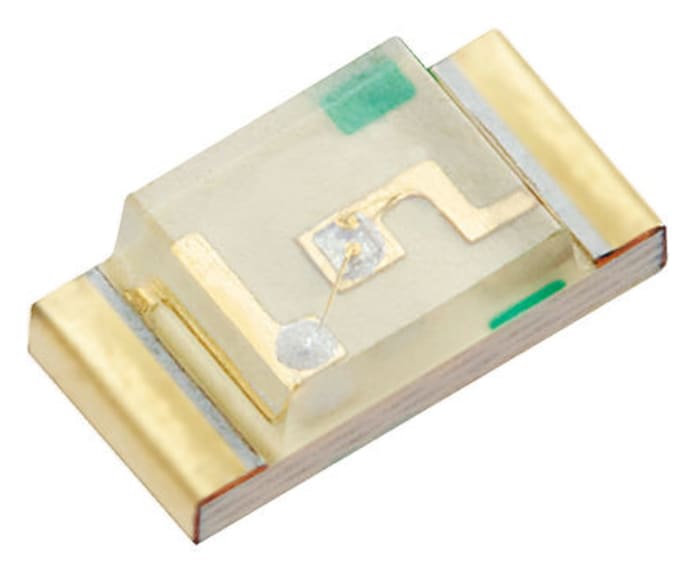

The Kingbright KP-3216SURCK is a discrete red LED designed for indication purposes. It features a prominent 630nm wavelength and a wide 120° viewing angle, making it suitable for applications requiring broad light dispersion.
This LED operates with a typical forward voltage of 2.5V and can handle a maximum forward current of 185mA, with a maximum power dissipation of 75mW. The component is housed in a compact 3216 (1206) surface mount package with a height of 1.1mm, ideal for space-constrained PCB designs.
The LED has a clear lens with a rectangular shape and provides a luminous intensity of 230 mcd. It is part of the KP-3216 series from Kingbright, known for its low power consumption and wide viewing angles, making them suitable for various backlighting and indicator applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The dominant wavelength is 630nm.
The luminous intensity is 230mcd.
The viewing angle is 120 degrees.
The typical forward voltage is 2.5V.
The maximum forward current is 185mA.
It is available in a 3216 (1206) surface-mount package.
