| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,473 pcs
|
1473 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,473 pcs
|
1473 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
980 pcs
|
980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Halogen Free | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle |

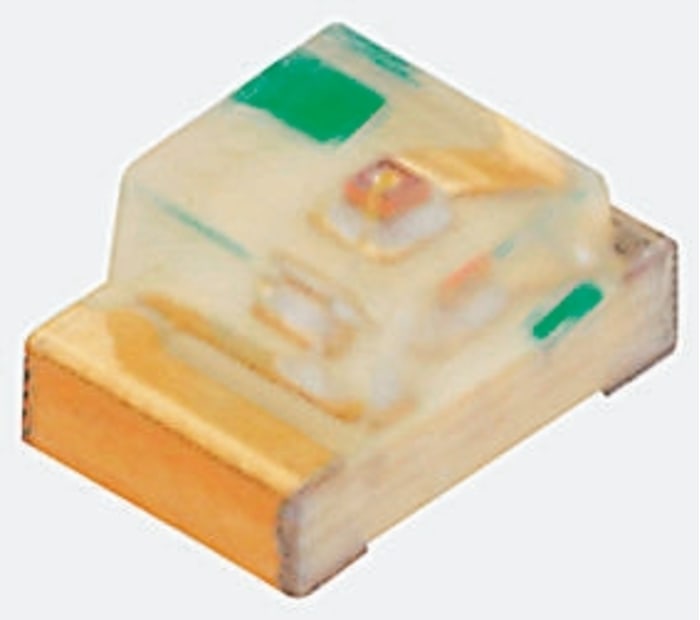

The Kingbright KP-2012SRC-PRV is a Super Bright Red SMD Chip LED designed for various applications. It features a compact 2.0mm x 1.25mm SMT package, commonly known as the 0805 size, with a thickness of 1.1mm.
This LED operates with a typical forward voltage of 1.85V and a maximum forward current of 30mA, making it suitable for low power consumption designs. Key electrical and optical characteristics include a peak wavelength of 660nm, a dominant wavelength of 640nm, and a spectral line half-width of 20nm. The typical capacitance is 45pF at 0V and 1MHz.
With a wide viewing angle of 120°, the KP-2012SRC-PRV is ideal for backlight and indicator applications. It is designed for surface mounting and comes in a tape and reel package, suitable for automated assembly processes. The operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package is 0805 SMD (surface mount).
The operating temperature range is -40°C to +85°C.
The typical forward voltage is 1.85V, maximum 2.5V at 20mA.
The typical dominant wavelength is 640nm.
The luminous intensity ranges from 55 to 100 mcd.
The viewing angle is 120°.
The peak forward current is 155mA under 1/10 duty cycle, 0.1ms pulse width.
