| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Length | |
| Actuator Orientation | |
| Actuator Type | |
| Bounce time | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Halogen Free | |
| Height | |
| IP Rating | |
| Illumination | |
| Insulation Resistance | |
| Length | |
| Maximum Current DC | |
| Maximum Voltage DC | |
| Mechanical Life | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Width |

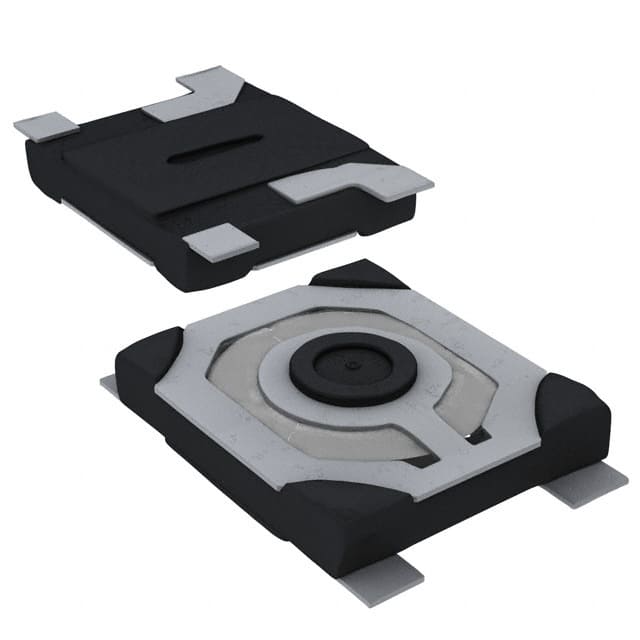

The C&K Components KMT221NG HF LFS is an ultra-miniature tactile switch from the KMT2 series, designed for applications requiring a small footprint and high cycle count. It features a momentary action with a SPST-NO contact arrangement and a contact rating of 0.05A at 32VDC.
This surface mount switch has gull wing termination style and a top actuated, standard actuator type. The actuator height is 0.65mm, with overall dimensions of 3.00mm x 2.60mm. It operates within a temperature range of -40°C to 85°C and has a mechanical life of 150,000 operations.
The switch is packaged in reels of 4,000 pieces and is suitable for lead-free reflow soldering processes. It is also halogen-free and meets RoHS3 compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a SPST-NO (Single Pole Single Throw - Normally Open) contact configuration.
The switch is rated for a maximum of 0.05A at 32VDC.
The operating temperature range is -40°C to 85°C.
Yes, the switch is RoHS3 Compliant.
The switch is supplied in reels of 4,000 pieces and is designed for surface mounting.
