| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
264,000 pcs
|
264000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Features | |
| Function | |
| Illumination | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

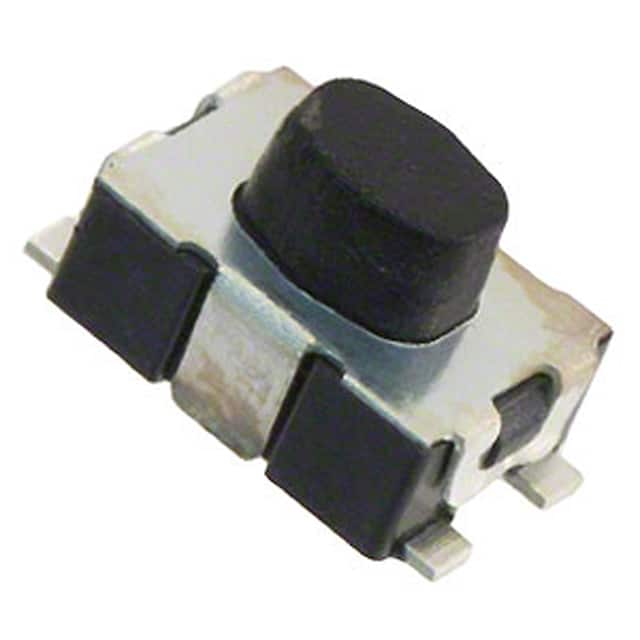

The C&K Components KMR441G LFS is a micro miniature SMT top actuated tactile switch designed for industrial, medical, and automotive applications. It offers ultra-low current capabilities and an excellent tactile feel.
This switch features a momentary action with a SPST-NO (Single Pole Single Throw, Normally Open) contact arrangement. It has a contact rating of 0.05A at 32VDC and a maximum power rating of 1 VA. The operating force is specified at 400gf, with tactile feeling rated at ≥ 25% for 2N-4N actuation forces and ≥ 20% for 1.2N actuation forces.
Designed for surface mounting, the KMR441G LFS utilizes gull wing termination style. Its dimensions are 4.60mm x 2.80mm, with an actuator height of 2.50mm off the PCB. The operating temperature range is -40°C to 85°C, and it is suitable for lead-free reflow soldering processes in accordance with IEC 61760-1.
Key specifications include a contact resistance of ≤ 100mΩ, insulation resistance of ≥ 1 GΩ, and a bounce time of ≤ 3 ms. The switch is available with or without a ground pin.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.05A at 32VDC.
The operating force is 400gf.
It uses gull wing termination style.
The operating temperature range is -40°C to 85°C.
It is packaged in reels of 6,000 pieces.
