| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Lead Style | |
| Leakage Current (Maximum @ 250 V / 60 Hz) | |
| MTBF | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating |

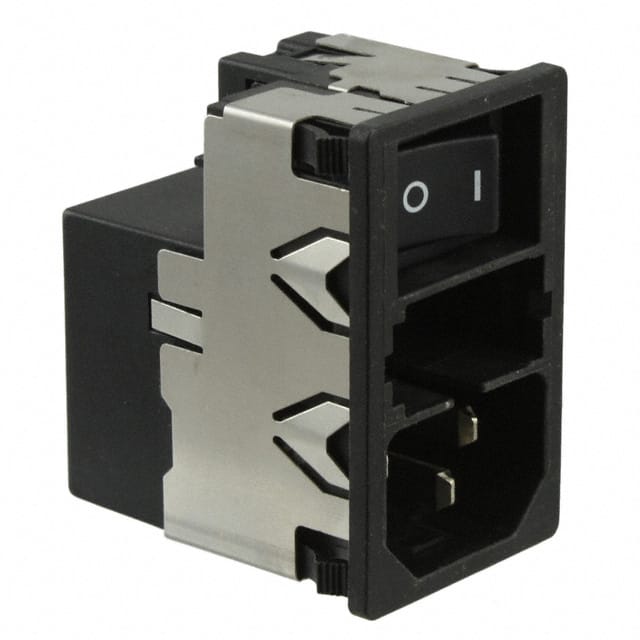

The Schurter KMF1.1211.11 is a compact power entry module combining an IEC 320-C14 appliance inlet, EMI/RFI line filter, 2-pole on-off switch, and provision for a 5x20mm fuse (drawer and fuse sold separately) in a single panel-mount package. Rated for 1A at 250VAC, it is designed for commercial equipment requiring filtered AC power entry.
Electrical specifications include a maximum leakage current of less than 0.5mA (standard version) and dielectric strength greater than 1.7kVDC between line-neutral and greater than 2.7kVDC between line/neutral and protective earth. The module operates over a temperature range of -25°C to 85°C and has a climatic category of 25/085/21 per IEC 60068-1.
Mechanically, the module features a snap-in panel mount for a rectangular cutout of 28.80mm x 47.80mm, accepting panel thicknesses from 0.039" to 0.098". Termination is via quick-connect tabs (0.189" / 4.8mm). The front side offers IP40 ingress protection, and the housing material meets UL94 V-0 flammability rating. The module is shielded for enhanced EMC performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $34.38 | $34.38 |
| 20+ | $27.82 | $27.82 |
| 40+ | $26.50 | $26.50 |
| 60+ | $25.75 | $25.75 |
| 100+ | $24.84 | $24.84 |
| 260+ | $23.22 | $23.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The module is rated for 1A at 250VAC.
It uses an IEC 320-C14 connector (receptacle, male blades).
The module accommodates a 5x20mm fuse, but the fuse and fuse drawer are sold separately.
The operating temperature range is -25°C to 85°C.
It is panel mount with snap-in installation.
The front side is rated IP40 per IEC 60529.
