| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

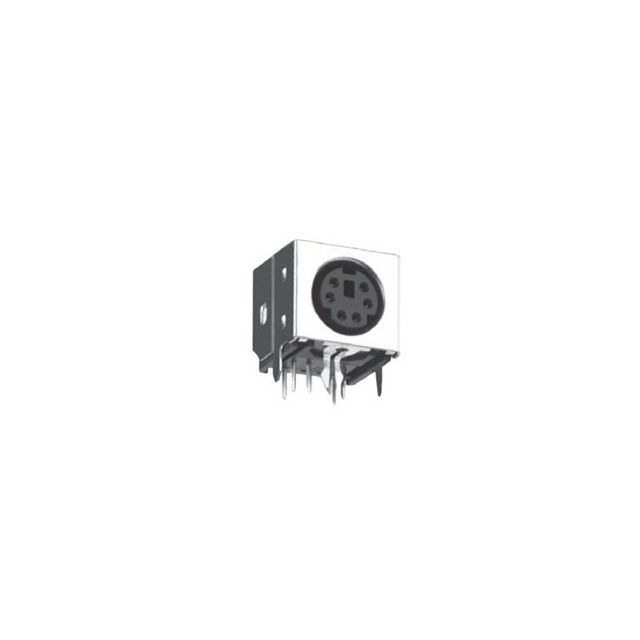

The KMDGX-8S-N is a Mini DIN receptacle from Kycon Inc. It features 8 positions with female socket contacts, designed for through hole right angle mounting. The connector is unshielded and uses a push-pull fastening mechanism.
Electrical ratings include 2A current and 12VDC voltage. Contact resistance is 30 mΩ max before durability and 60 mΩ after. Insulation resistance is 500 MΩ min at 500VDC. Dielectric withstanding voltage is 500V RMS AC for 1 minute.
The body is made of PBT thermoplastic available in black, purple, or green. Contacts are gold plated copper alloy. The connector includes a board lock feature for secure PCB attachment. Operating temperature range is -25°C to 80°C.
This connector is suitable for applications requiring a compact, keyed circular interface. The right angle orientation allows for low-profile PCB mounting. It is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 6,000+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2A.
12VDC.
Through hole, right angle.
-25°C to 80°C.
1000 cycles minimum.
Gold.
