| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
129 pcs
|
129 pcs | On Request | 1 | On Request | On Request | 0640 | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

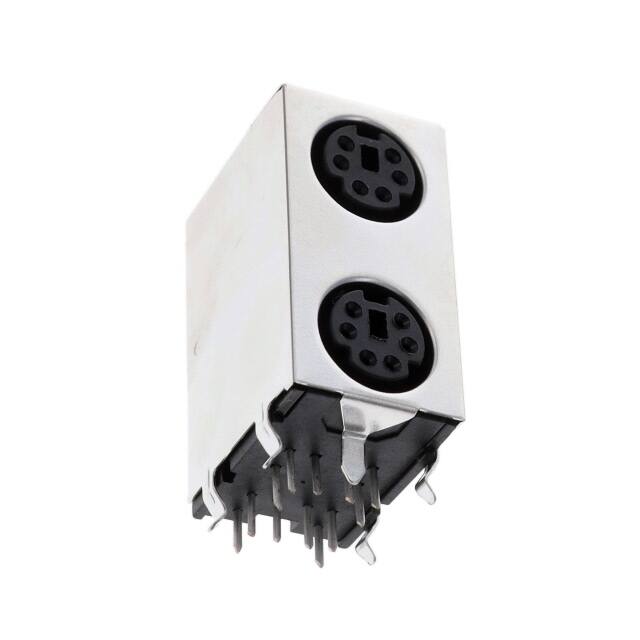

The KMDGX-6S/6S-S4N is a shielded Mini DIN receptacle with a stacked 6+6 position arrangement. It uses female sockets with gold-plated contacts for reliable signal transmission. The connector features a push-pull fastening mechanism and a keyed orientation to prevent mis-mating. It is rated for 2 A current and 12 VDC voltage, suitable for low-power signal applications.
This connector is designed for through-hole, right-angle mounting with solder termination, making it compatible with standard PCB assembly processes. The housing is made from Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring durability and safety. The shell is shielded and includes a board lock feature for secure attachment. Available in black and silver color options.
Typical applications include consumer electronics, computer peripherals, and industrial control interfaces that require a compact, keyed, multi-pole connection. The operating temperature range of -25°C to 80°C allows use in a variety of environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $4.00 |
| 10+ | $3.40 | $3.40 |
| 25+ | $3.18 | $3.18 |
| 50+ | $3.03 | $3.03 |
| 100+ | $2.89 | $2.89 |
| 300+ | $2.67 | $2.67 |
| 500+ | $2.58 | $2.58 |
| 1,000+ | $2.45 | $2.45 |
| 2,500+ | $2.30 | $2.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female sockets.
It has 6 positions plus another 6 positions, for a total of 12 contacts.
Through hole, right angle.
2 A.
12 VDC.
-25°C to 80°C.
Polybutylene Terephthalate (PBT).
