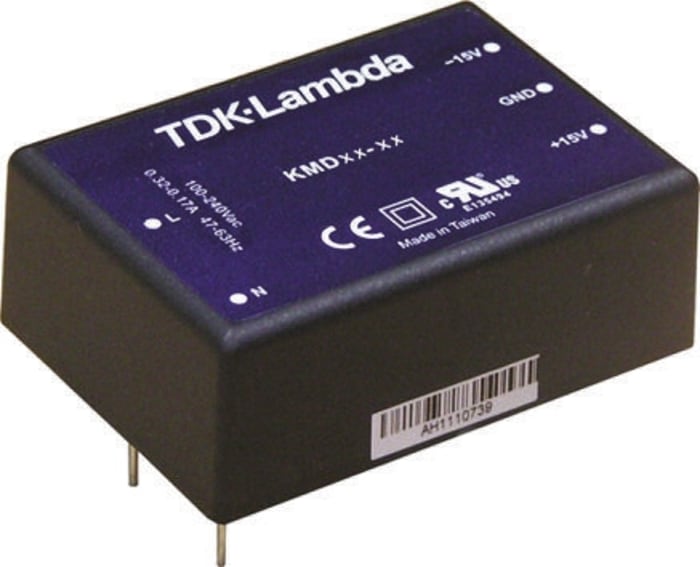

The TDK Corporation KMD40-1212 is an enclosed AC/DC converter designed for medical applications. It provides a power output of 40W with dual outputs of +/-12V, each capable of delivering 1.66A.
This converter features through-hole mounting for secure integration into electronic assemblies. Its dimensions are 89.0mm in length, 63.5mm in width, and 27.0mm in height. The operating temperature range is -25°C to 70°C, with derating applied at higher temperatures.
Key electrical specifications include an efficiency of 83% and universal input. It adheres to several standard numbers, including 60601-1, 60950-1, and 62368-1, and carries approvals from CE, EN, IEC, and UL agencies.
The KMD40-1212 provides dual outputs of +12V and -12V.
The package is a 7-DIP Module with 5 leads, and mounting is through-hole.
-25°C to 70°C with derating.
CE, EN, IEC, UL. Complies with medical standard 60601-1 and ITE standards 60950-1 and 62368-1.
Total output power is 40W with 83% efficiency.
It has 2 outputs, each rated at 1.66A.
