| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Housing Material | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Voltage Rating |

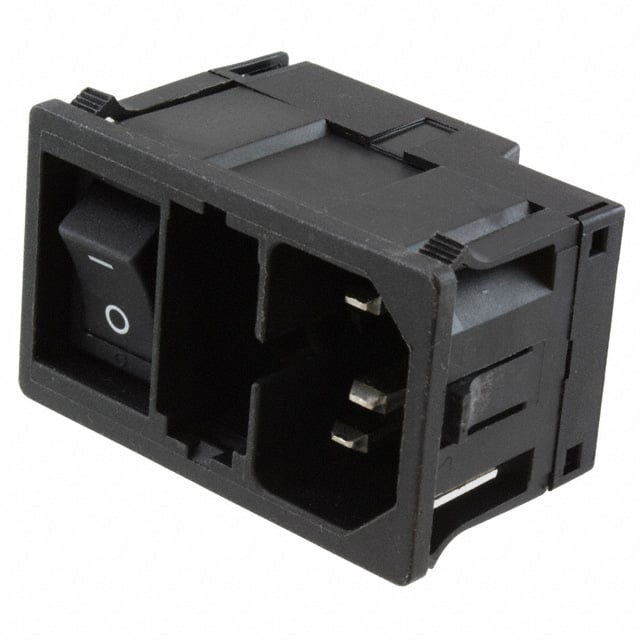

The Schurter KM00.1205.11 is a compact power entry module combining an IEC 320-C14 appliance inlet, a 2-pole on-off switch, and a fuseholder for 5x20mm fuses. It is designed for snap-in panel mounting from the front side, with quick connect terminals (4.8mm).
The module is rated 10A at 250VAC (IEC and UL/CSA) and suitable for protection class I or II equipment. It meets the requirements of IEC 60335-1 for unattended appliances and passes glow wire tests per IEC 60695-2-11/-12/-13. The housing is thermoplastic black with UL94 V-0 flammability rating, and the front side offers IP40 ingress protection.
This unfiltered version is ideal for applications requiring high transient loads, such as industrial controls, medical devices, and IT equipment. The fuseholder category is PC2 with a power acceptance of 2W per pole. The fuse drawer is not included and must be ordered separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.78 | $14.78 |
| 10+ | $12.56 | $12.56 |
| 25+ | $11.77 | $11.77 |
| 50+ | $11.21 | $11.21 |
| 100+ | $10.68 | $10.68 |
| 250+ | $10.01 | $10.01 |
| 500+ | $9.53 | $9.53 |
| 1,000+ | $9.08 | $9.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 3 positions: line, neutral, and ground.
The module is rated 10 A at 250 VAC (IEC and UL/CSA).
The voltage rating is 250 VAC.
The module is panel mounted with snap-in retention.
The front side is rated IP40 according to IEC 60529.
The module is approved under CCC, cULus, and ENEC.
The module operates from -25°C to 70°C.
