| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,814 pcs
|
1814 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Country of Origin | |
| Failure Rate | |
| Forward Voltage | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Number of Pins | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle |

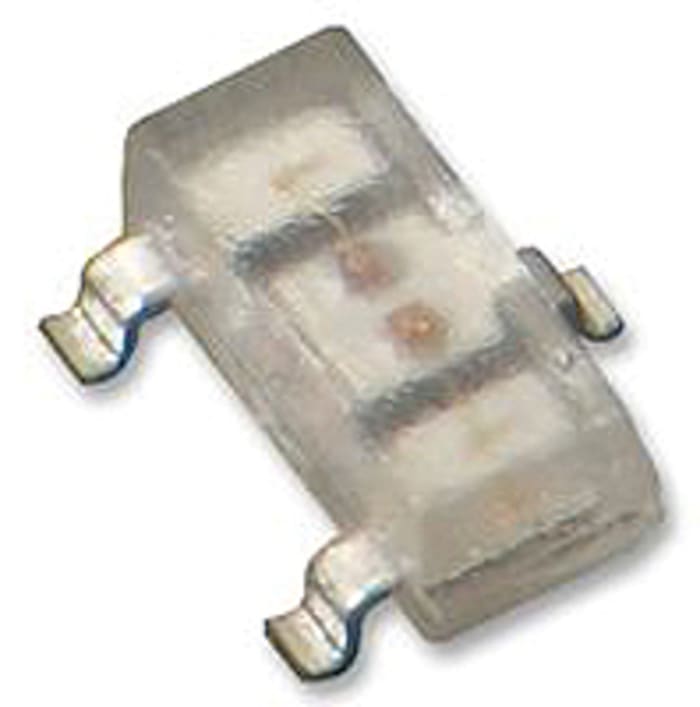

The Kingbright KM-23YC-F is a yellow LED designed for surface mount applications, utilizing the industry-standard SOT-23 package. This component offers low power consumption and long operational life due to its solid-state reliability.
Key electrical specifications include a maximum forward current of 140mA and a typical forward voltage of 2.5V, with a maximum power dissipation of 75mW. The LED emits yellow light with a dominant wavelength of 588nm and provides a wide viewing angle of 140°.
The lens is clear and rectangular in shape, with dimensions of 3 x 1.05 mm. The LED has 3 pins and is supplied in tape and reel packaging, suitable for automated assembly processes. The series designation is KA-23.
This LED is manufactured in China and is RoHS3 compliant. It is not specified for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the KM-23YC-F LED is 2.5V.
The maximum forward current for the KM-23YC-F LED is 140mA.
The viewing angle of the KM-23YC-F LED is 140°.
The KM-23YC-F LED is supplied in a SOT-23 package.
The dominant wavelength of the KM-23YC-F LED is 588nm.
