| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,433 pcs
|
3433 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Viewing Angle |

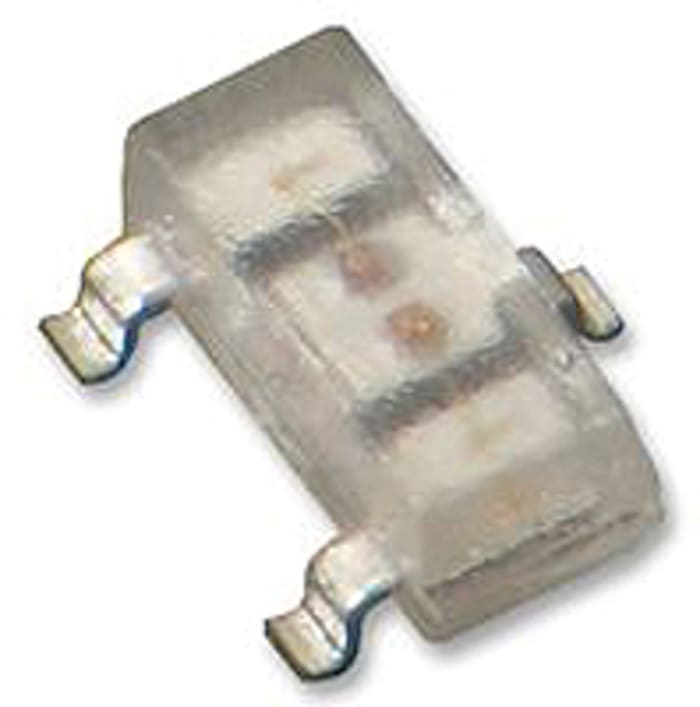

The Kingbright KM-23EC-F is a high-efficiency red LED designed for surface mount applications. It features a SOT-23 package, providing low power consumption and long-life solid-state reliability.
This LED emits light with a dominant wavelength of 617nm and a peak wavelength of 627nm. It offers a typical luminosity of 12mcd at 20mA and a wide viewing angle of 140 degrees. The forward voltage is typically 2V, with a maximum of 2.5V at 20mA. The maximum power dissipation is 75mW, and the DC forward current is rated up to 30mA, with a peak forward current of 160mA.
Operating and storage temperatures range from -40°C to +85°C. The LED is housed in a clear, rectangular lens and is suitable for various electronic applications requiring a red light source. It is packaged in a tape and reel format, with 2000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The dominant wavelength is 617nm.
The typical forward voltage is 2V at 20mA.
The operating temperature range is -40°C to +85°C.
The KM-23EC-F LED is supplied in a SOT-23 package.
The KM-23EC-F LED is packaged in a tape and reel with 2000 pieces per reel.
