| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

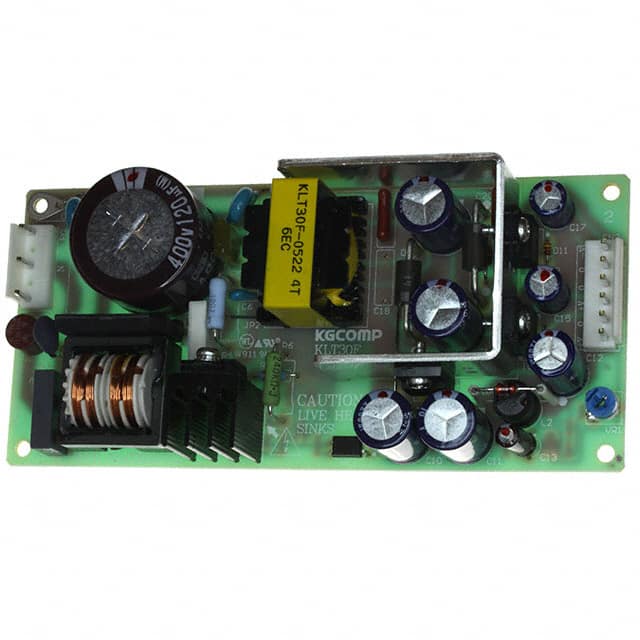

The KLT30F-0522 from Kaga Electronics USA is an open-frame AC/DC power supply designed for various applications. It offers a universal input voltage range of 85 to 264 VAC and operates at a frequency of 47 to 63 Hz, providing a stable output power of 15W.
This converter features triple outputs, specifically +5V, +12V, and -12V, with corresponding current ratings. Key electrical specifications include an efficiency of 70% typical, over-voltage protection on channel 1, and automatic recovery for over-current protection. The unit is built with isolation voltages of 3000 VAC (primary to secondary), 1500 VAC (primary to case), and 500 VAC (secondary to case).
Designed for ease of integration, the KLT30F-0522 has a chassis mount type and operates within a temperature range of 0°C to 60°C. Its compact dimensions (127.0mm x 50.0mm x 22.6mm) make it suitable for space-constrained designs. The power supply also includes features like over-voltage protection and over-current protection for enhanced reliability.
Compliance certifications include CE, UL60950, and CSA C22.2 No. 60950. The product is RoHS3 compliant and has an MSL rating of 1.
The KLT30F-0522 provides +5V at 4.0A, +12V at 1.2A, and -12V at 0.5A.
The input voltage range is 85 to 264 VAC.
The power rating is 15W.
The operating temperature range is 0°C to 60°C.
It uses chassis mount.
Yes, it is RoHS3 Compliant.
