| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Function | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

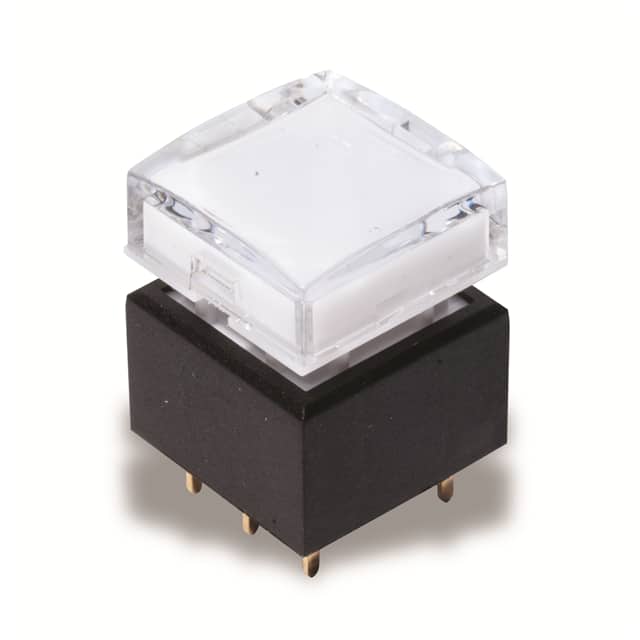

This C&K Components KLS22F036AQ is an illuminated pushbutton switch from the KLS series. It offers a Double Pole Double Throw (DPDT) configuration with a momentary (On-Mom) switch function. The switch is designed for PCB mounting with straight PC terminals.
Key electrical specifications include a voltage rating of 25 VDC and a current rating of 500mA (DC). The illumination is provided by an LED with a nominal voltage of 2 VDC, available in Green/Red colors. The operating temperature range is -40°C to 85°C, and it has an operating life of 200,000 cycles for the contacts.
The mechanical specifications include a total travel of 2.2 mm and an operating force of 300 ± 150 gf for DPDT configurations. The case is made of PA66+70G33L, the actuator of POM, and the cap of PC. The terminals and contacts are brass or copper with silver or gold plating.
This switch is suitable for applications requiring clear status indication and positive tactile feedback, such as in audio/video systems, vending machines, kiosks, and network equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The voltage rating is 25 V.
The current rating is 500mA (DC).
It offers LED illumination in Green/Red colors with a nominal voltage of 2 VDC.
It is a DPDT (Double Pole Double Throw) switch with a momentary (On-Mom) function.
