| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Dielectric Withstanding Voltage | |
| Features | |
| Gender | |
| Housing Material | |
| Industry Recognized Mating Diameter | |
| Insulation Color | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Signal Lines | |
| Termination | |
| Termination Style |

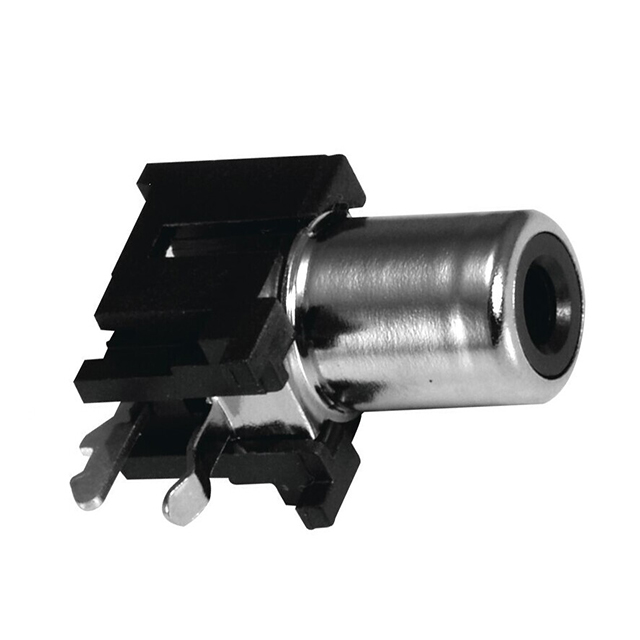

The KLPX-0848A-2-O is a female RCA phono jack from Kycon's KLPX series. It features a right angle through hole mounting style with kinked pin termination, making it suitable for PCB mounting in space-constrained designs. The connector is unshielded and does not contain an internal switch, with a board lock feature for secure attachment. The insulation is orange, and the housing is made of PBT thermoplastic with UL94V-0 flammability rating. Terminals are brass with tin plating.
Electrical specifications include a contact resistance of 30 mΩ max, insulation resistance of 100 MΩ min at 500V DC, and dielectric withstanding voltage of 500V AC RMS. Mechanical characteristics: insertion and extraction force of 0.3-3.0 kg, and durability of 5000 mating cycles minimum. Operating temperature range is -25°C to +80°C.
The connector is RoHS3 and REACH compliant. It is ideal for audio applications in computers and multimedia devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $0.93 | $0.93 |
| 25+ | $0.87 | $0.87 |
| 50+ | $0.83 | $0.83 |
| 100+ | $0.79 | $0.79 |
| 250+ | $0.74 | $0.74 |
| 500+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 2 conductors and 2 contacts.
Through hole, right angle with kinked pin termination.
-25°C to +80°C.
30 milliohms maximum.
100 megohms minimum at 500V DC.
5000 mating cycles minimum.
Yes, RoHS3 compliant and REACH unaffected.
