| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Features | |
| Gender | |
| Housing Material | |
| Industry Recognized Mating Diameter | |
| Insulation Color | |
| Insulation Resistance | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Signal Lines | |
| Termination | |
| Termination Style |

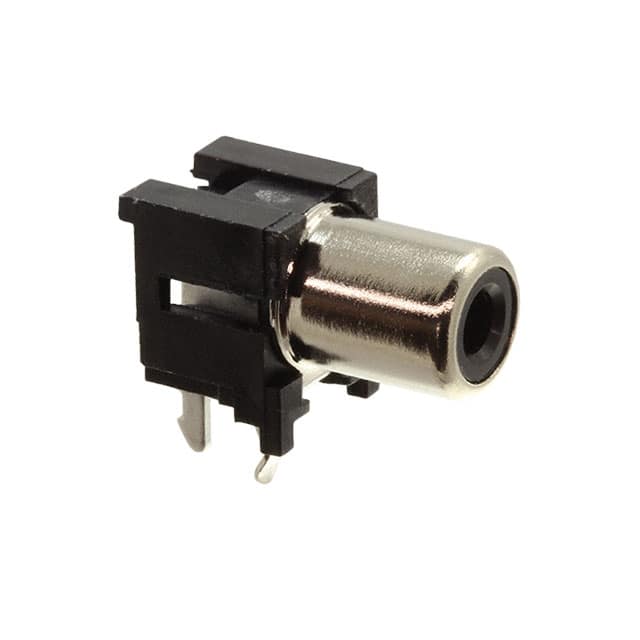

The Kycon KLPX-0848A-2-B is a female RCA phono jack designed for PCB mounting in a right-angle orientation. It is part of the KLPX series and features a black PBT thermoplastic housing with UL94V-0 rating. The jack has two conductors and is suitable for mono audio signals. Electrical specifications include a maximum contact resistance of 30 milliohms, minimum insulation resistance of 100 megohms at 500 VDC, and dielectric withstanding voltage of 500 VAC RMS for 1 minute. Mechanically, the jack offers an insertion and extraction force range of 0.3 to 3.0 kg and a minimum durability of 5000 mating cycles. The terminals are made of brass with tin plating, and the termination style is kinked pin for through-hole soldering. The component includes a board lock feature for secure mounting. It is unshielded and does not contain internal switches. The operating temperature range is -25°C to 80°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.79 | $0.79 |
| 10+ | $0.67 | $0.67 |
| 25+ | $0.63 | $0.63 |
| 50+ | $0.60 | $0.60 |
| 100+ | $0.57 | $0.57 |
| 250+ | $0.53 | $0.53 |
| 500+ | $0.51 | $0.51 |
| 1,000+ | $0.48 | $0.48 |
| 2,500+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 conductors (2 contacts) for mono audio.
Through hole, right angle.
-25°C to 80°C.
5000 cycles minimum.
30 milliohms.
Kinked pin for through-hole soldering.
No, unshielded.
