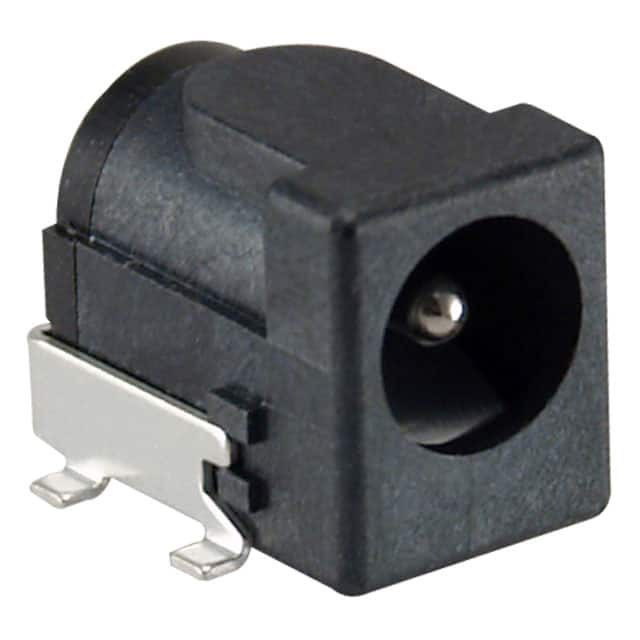

The Kycon KLDX-SMT2-0202-BTR is a surface mount DC power jack designed for portable device applications. It features a 2.5mm center pin diameter and a 5.5mm outer diameter, with an actual outer diameter of 6.5mm. The connector includes a single normally closed internal switch and has 2 conductors with 3 contacts.
Electrical specifications include a maximum current rating of 3.5A and a maximum voltage rating of 24VDC. Contact resistance is 30mOhm max between terminals before durability testing, and 50mOhm max from plug to contacts. Insulation resistance is 100MOhm min at 500VDC, and dielectric withstanding voltage is 500VAC RMS for 1 minute.
Mechanically, the jack is surface mounted with a right angle orientation and solder termination. It features board guide and solder retention for reliable assembly. The operating temperature range is -25°C to 65°C. Durability is rated for 5000 cycles with insertion and extraction forces between 0.3kg and 2.0kg.
The connector is unshielded and comes in tape and reel packaging. The housing is made of LCP with UL94 V-0 flammability rating. It is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 350+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameter is 2.50mm ID and 5.50mm OD.
The maximum current rating is 3.5A.
The maximum voltage rating is 24VDC.
It is surface mount with a right angle orientation.
Yes, it has a single normally closed internal switch.
The operating temperature range is -25°C to 65°C.
The minimum durability is 5000 cycles.
