| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | 2026-02-13 08:15:00 | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Actual Diameter (Outer) | |
| Body Material | |
| Connector Type | |
| Contact Material | |
| Current Rating (Amps) | |
| Durability | |
| Extraction Force | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Insertion Force | |
| Insulation Resistance | |
| Internal Switch(s) | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mating Diameter (Outer) | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Voltage |

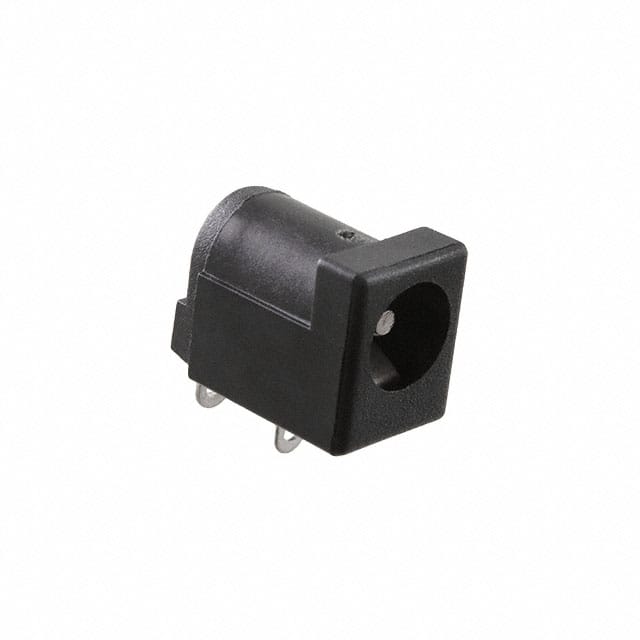

The Kycon KLDX-0202-A is a locking type PCB mount DC power jack from the KLDX series, designed for applications requiring a secure connection. It features a 2.0mm center pin diameter and a 5.5mm outer mating diameter, with a through-hole, right-angle mounting configuration.
This connector is rated for 3.5A at 24VDC and includes a single switch, normally closed internal switch. It is unshielded and terminated with solder eyelets. The body is made of PBT thermoplastic with a UL94 V-0 flammability rating, and the contacts are brass with nickel or tin plating.
The locking feature ensures a reliable connection with Kycon locking plugs, making it suitable for portable devices. It has a durability of 5000 cycles and an operating temperature range of -25°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
| 10+ | $0.65 | $0.65 |
| 25+ | $0.61 | $0.61 |
| 50+ | $0.58 | $0.58 |
| 100+ | $0.55 | $0.55 |
| 250+ | $0.52 | $0.52 |
| 500+ | $0.49 | $0.49 |
| 1,000+ | $0.47 | $0.47 |
| 2,500+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KLDX-0202-A has a current rating of 3.5 A.
The voltage rating is 24 VDC.
The mounting type is Through Hole, Right Angle.
The inner mating diameter is 2.00 mm and the outer mating diameter is 5.50 mm.
Yes, it includes a locking feature designed to lock with Kycon locking plugs.
The operating temperature range is -25°C to 85°C.
Yes, it is RoHS3 compliant.
