| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
610 pcs
|
610 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage |

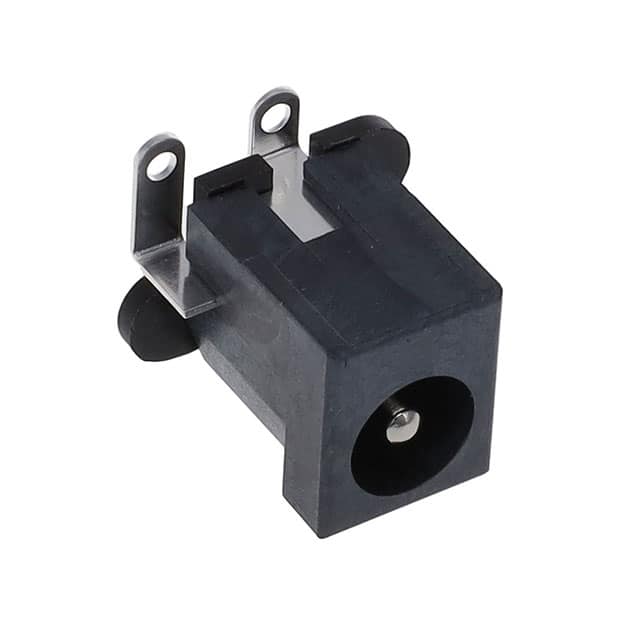

The Kycon Inc. KLDVX-SMT-02-ATR is a versatile DC Power Jack connector, categorized under Power Connectors within the Barrel Connectors family. Designed for modern electronic assemblies, it features a Surface Mount (SMT) type for efficient PCB integration and a Flange mounting feature.
This connector is rated for a current of 3.5 A and a voltage of 16 VDC, making it suitable for a variety of power delivery applications. It has 2 conductors and 3 contacts, with a single normally closed internal switch. The operating temperature range is from -25°C to 85°C. The mating diameter is specified with an Industry Recognized 2.00mm ID (0.079") and 5.50mm OD (0.217"), with an actual diameter of 0.079" (2.00mm ID) and 0.248" (6.30mm OD). Termination is achieved via Solder Eyelet(s).
The material has a UL94 V-0 flammability rating, contributing to safety in electronic designs. It is unshielded and designed for male gender connection. The connector is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3.5 A.
The voltage rating is 16VDC.
It uses Surface Mount type mounting.
The operating temperature range is -25°C to 85°C.
The industry recognized mating diameter is 2.00mm ID (0.079") and 5.50mm OD (0.217").
Yes, it has a single switch that is normally closed.
The termination style is Solder Eyelet(s).
