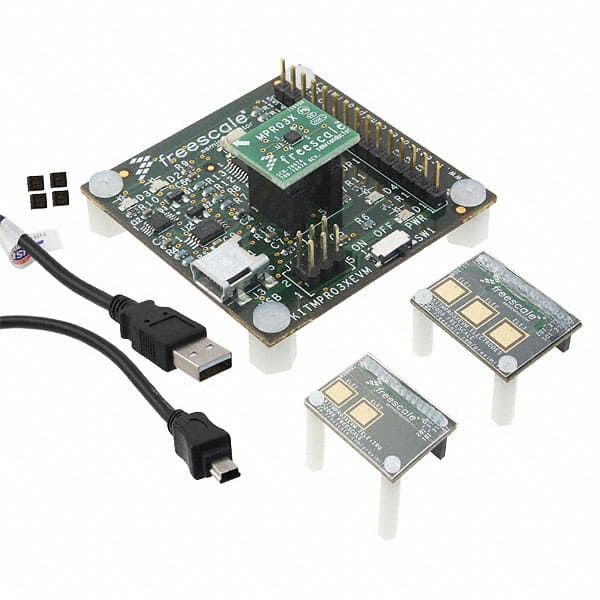

KITMPR03XEVM Evaluation board for NXP MPR03X capacitive touch sensor controller. Supports up to 3 touch pads with I²C interface and ultra-low power consumption.
Mfr Part #:

KITMPR03XEVM

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
Evaluation board for NXP MPR03X capacitive touch sensor controller. Supports up to 3 touch pads with I²C interface and ultra-low power consumption.
✓ Total Stock: 5,500 pcs

KITMPR03XEVM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,500 pcs
On Request
5500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KITMPR03XEVM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Embedded
Interface
Mounting Type
Operating Temperature Range
Sensor Type
Supplied Contents
Termination Style
Utilized IC
Voltage
View Similar Products (0)

KITMPR03XEVM Description

Short technical summary and product information.

The KITMPR03XEVM is an evaluation board for the NXP MPR03X series capacitive touch sensor controllers. The board supports up to 3 touch pads with interrupt capability (2 pads with IRQ enabled) and operates over a supply voltage range of 1.71 V to 2.75 V. Typical supply current is 6 µA with two electrodes and IRQ enabled at 32 ms response time, and maximum shutdown current is 4 µA.



The board utilizes the MPR031 or MPR032 IC in an 8-µDFN (2x2 mm) package. Communication is via I²C interface at up to 400 kbit/s, with I²C address 0x4A for MPR031 and 0x4B for MPR032. Operating temperature range is -40°C to +85°C.



Typical applications include PC peripherals, MP3 players, remote controls, mobile phones, and lighting controls. The board provides a convenient platform for evaluating touch sensing solutions with low power consumption and small footprint.

KITMPR03XEVM Quick Information

Product Type: Evaluation Board
Series: MPR03X
Canonical Name: KITMPR03XEVM Evaluation Board for MPR03X Capacitive Touch Sensor Controller
Subcategory: Sensors Evaluation Boards

KITMPR03XEVM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

KITMPR03XEVM Features

  • Ultra-low power 6 µA supply current.
  • Operates from 1.71V to 2.75V.
  • Supports up to 3 touch pads.
  • I²C interface with interrupt capability.
  • Compact 2x2 mm µDFN package.

KITMPR03XEVM Applications

  • Ideal for touch pad replacements.
  • Used in PC peripherals and remote controls.
  • Suitable for mobile phone interfaces.
  • Great for lighting control panels.

KITMPR03XEVM FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of this evaluation board?

The supply voltage range is 1.71V to 2.75V.

What is the operating temperature range of the KITMPR03XEVM?

The operating temperature range is -40°C to +85°C.

What package does the MPR03X IC come in?

The MPR03X IC is in an 8-µDFN (2x2mm) package.

Is the KITMPR03XEVM RoHS compliant?

The board is marked as RoHS3 Compliant, but this is unverified and low confidence.

How many touch pads does the MPR03X support?

The MPR03X supports up to 3 touch pads with interrupt disabled, or 2 with interrupt enabled.

What is the I²C address for the MPR031?

The I²C address for the MPR031 is 0x4A.
