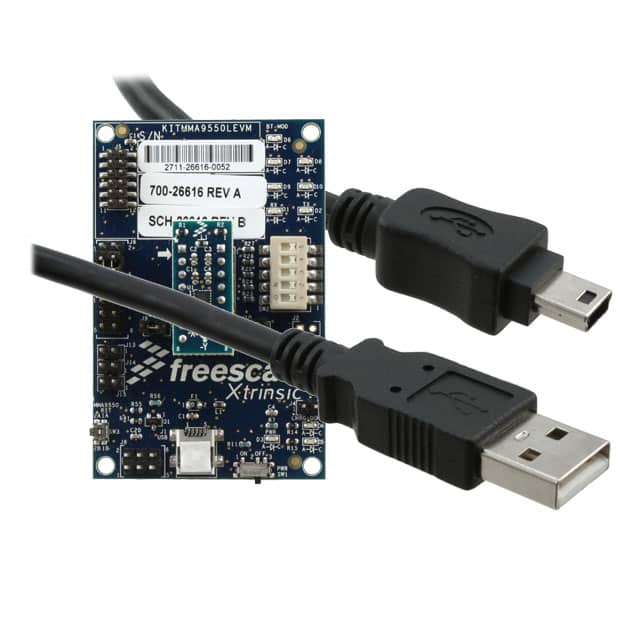

KITMMA9550LEVM The KITMMA9550LEVM is an evaluation board for the NXP MMA955XL intelligent motion-sensing platform. It features a 3-axis accelerometer with selectable ±2g, ±4g, and ±8g ranges, I²C interface, and integrated temperature sensor.
Mfr Part #:

KITMMA9550LEVM

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The KITMMA9550LEVM is an evaluation board for the NXP MMA955XL intelligent motion-sensing platform. It features a 3-axis accelerometer with selectable ±2g, ±4g, and ±8g ranges, I²C interface, and integrated temperature sensor.
✓ Total Stock: 3,500 pcs

KITMMA9550LEVM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KITMMA9550LEVM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Core Processor
Embedded
Halogen Free
Industrial Grade
Interface
Medical Grade
Military Grade
SVHC Present
Sensing Range
Sensitivity
Sensor Type
Supplied Contents
Tape & Reel
Utilized IC
View Similar Products (0)

KITMMA9550LEVM Description

Short technical summary and product information.

The KITMMA9550LEVM is an evaluation board designed for the NXP MMA955XL intelligent motion-sensing platform. This platform integrates a 3-axis accelerometer with selectable sensitivity ranges of ±2g, ±4g, and ±8g, along with an integrated temperature sensor. The board communicates via I²C interface and supports output data rates from 0.24 Hz to 3906 Hz. The utilized MMA955XL IC features a 32-bit core processor, 16 KB flash memory, and 2 KB RAM, enabling on-board processing and decision-making. The evaluation kit includes the board and necessary cables for immediate setup. It is ideal for developing applications such as gesture recognition, pedometer functionality, tilt compensation, and activity monitoring. The board does not include an embedded microcontroller, as the sensor itself contains a programmable MCU for custom algorithm implementation.

KITMMA9550LEVM Quick Information

Product Type: Evaluation Board for Sensors
Series: MMA955xL
Canonical Name: KITMMA9550LEVM Evaluation Board for MMA955XL Accelerometer

KITMMA9550LEVM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: No

KITMMA9550LEVM Features

  • 3-axis accelerometer with selectable ±2/±4/±8g ranges.
  • I²C interface operating up to 2 Mbps.
  • Integrated temperature sensor for environmental monitoring.
  • 32-bit microcontroller with 16 KB flash and 2 KB RAM.
  • Evaluation kit includes board and cables.

KITMMA9550LEVM Applications

  • Supports gesture recognition and motion detection.
  • Supports pedometer and activity monitoring.
  • Supports tilt compensation and calibration.
  • Supports gaming and abrupt activity detection.
  • Acts as sensor hub for managing secondary sensors.

KITMMA9550LEVM FAQs

7 frequently asked questions generated from this part’s specifications.
What sensor type is used on the KITMMA9550LEVM?

Accelerometer, 3 Axis.

What are the selectable accelerometer ranges?

±2g, ±4g, and ±8g.

What communication interface does the board support?

I²C.

What is the utilized IC on this evaluation board?

MMA955XL.

Does the board include an integrated temperature sensor?

Yes, the MMA955XL includes an integrated temperature sensor.

What is the output data rate range?

0.24 Hz to 3906 Hz.

Is the KITMMA9550LEVM RoHS compliant?

RoHS3 Compliant.
