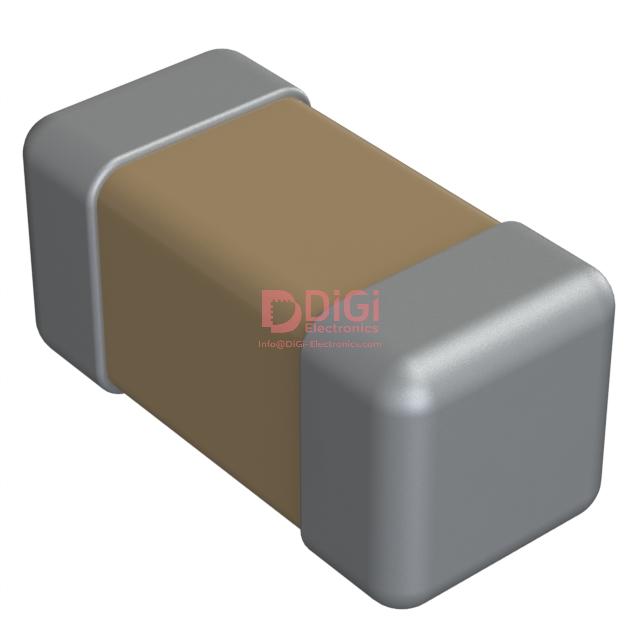

KGM15AR71H332KM The Kyocera AVX KGM15AR71H332KM is a ceramic capacitor with a capacitance of 3300 pF (3.3 nF) and a rated voltage of 16V. It features an X7R temperature coefficient and a surface mount MLCC package.
Mfr Part #:

KGM15AR71H332KM

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX KGM15AR71H332KM is a ceramic capacitor with a capacitance of 3300 pF (3.3 nF) and a rated voltage of 16V. It features an X7R temperature coefficient and a surface mount MLCC package.
✓ Total Stock: 200,000 pcs
$ Price Range: $2.04

KGM15AR71H332KM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
200,000 pcs
On Request
200000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KGM15AR71H332KM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Mounting Type
Operating Temperature
Temperature Coefficient
Thickness (Max)
Tolerance
View Similar Products (0)

KGM15AR71H332KM Description

Short technical summary and product information.

This Kyocera AVX KGM15AR71H332KM is a ceramic capacitor designed for general purpose applications. It offers a capacitance of 3300 pF with a tolerance of ±10%, and a rated voltage of 16V.



The capacitor utilizes an X7R temperature coefficient, ensuring stable performance across a wide operating temperature range of -55°C to 125°C. Its dimensions are 0.063 inches by 0.031 inches (1.60mm x 0.80mm), with a maximum thickness of 0.80mm.



Designed for surface mounting, this MLCC (Multi-Layer Ceramic Capacitor) is suitable for various electronic circuits where space efficiency is crucial. The general-purpose application designation indicates its versatility in common electronic designs.

KGM15AR71H332KM Quick Information

Product Type: Ceramic Capacitor
Canonical Name: Kyocera AVX KGM15AR71H332KM Ceramic Capacitor 3300pF 16V X7R
Subcategory: Ceramic Capacitor

KGM15AR71H332KM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KGM15AR71H332KM Estimated Pricing

Qty Low High
1+ $2.04 $2.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

KGM15AR71H332KM Features

  • 3300 pF capacitance with ±10% tolerance.
  • Rated for 16V DC operation.
  • X7R temperature coefficient for stability.
  • Wide operating temperature range: -55°C to 125°C.
  • 0603 (1608 Metric) surface mount MLCC package.

KGM15AR71H332KM Applications

  • Suitable for general-purpose electronic circuits.
  • Used in high-frequency filtering applications.
  • Ideal for surface-mount device designs.
  • Suitable for temperature-sensitive environments.
  • Applicable in compact electronic device assemblies.

KGM15AR71H332KM FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the KGM15AR71H332KM capacitor?

The capacitance is 3300 pF (3.3 nF).

What is the voltage rating for the KGM15AR71H332KM?

The rated voltage is 16V.

What is the temperature coefficient of this ceramic capacitor?

The temperature coefficient is X7R.

What is the operating temperature range for the KGM15AR71H332KM?

It operates from -55°C to 125°C.

What type of mounting does the KGM15AR71H332KM use?

It uses surface mount, MLCC mounting.

What are the dimensions of the 0603 package?

The dimensions are 0.063" L x 0.031" W (1.60mm x 0.80mm).
