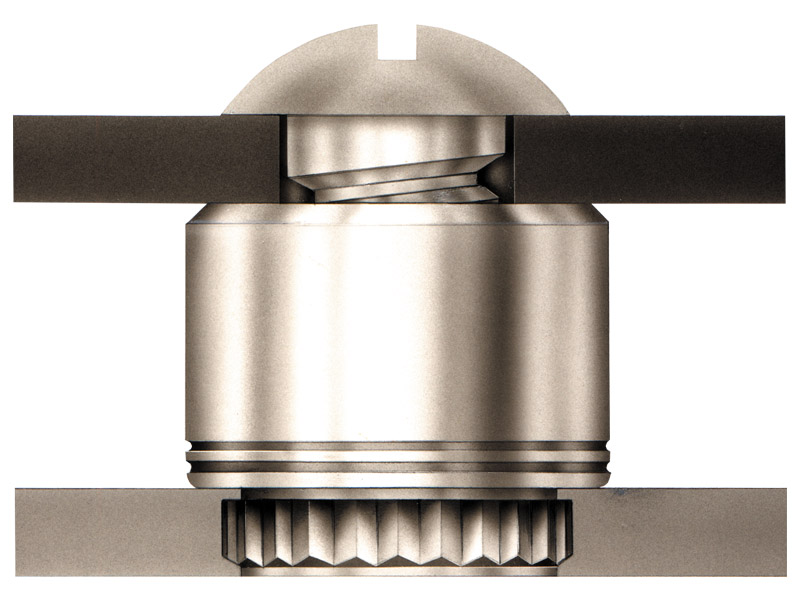

The PEM KFSE-440-4 is a broaching standoff designed for applications requiring secure stacking or spacing of components. It features a #4-40 internal thread specification (2B, ASME B1.1) and is manufactured from durable 300 Series Stainless Steel.
The standoff is finished with passivation and/or tested per ASTM A380, ensuring corrosion resistance. It is suitable for use in sheet materials with a hardness of HRB 70 / HB 125 or less. The broaching mounting type allows for permanent installation into the host material.
Key mechanical specifications include a shank diameter of 0.06 inches, a body diameter of 0.184 inches, and an overall length of 0.219 inches. The minimum thread length is 0.125 inches. Installation requires a specific hole size in the sheet of 0.166 inches, with a minimum distance from the hole centerline to the edge of 0.17 inches.
Performance data indicates typical installation torque of 400 lbs. and a pushout force of 65 lbs., demonstrating its robust mechanical performance in various applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KFSE-440-4 standoff has a #4-40 thread size.
The KFSE-440-4 standoff is made from 300 Series Stainless Steel.
The KFSE-440-4 standoff is designed for use in sheet materials with a hardness of HRB 70 / HB 125 or less.
The typical installation torque for the KFSE-440-4 standoff is 400 lbs.
The typical pushout force for the KFSE-440-4 standoff is 65 lbs.
