KFS2-M2 The PREM KFS2-M2 is a broaching nut designed for metric applications. It features an M2 x 0.4 thread and is constructed from durable 300 Series Stainless Steel.
Mfr Part #:

KFS2-M2

Available from 1 distributors
Mfr Name: PREM
PREM
The PREM KFS2-M2 is a broaching nut designed for metric applications. It features an M2 x 0.4 thread and is constructed from durable 300 Series Stainless Steel.
✓ Total Stock: 250 pcs
$ Price Range: $3.00

KFS2-M2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request 1434 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KFS2-M2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Product Type
Thread Size
View Similar Products (0)

KFS2-M2 Description

Short technical summary and product information.

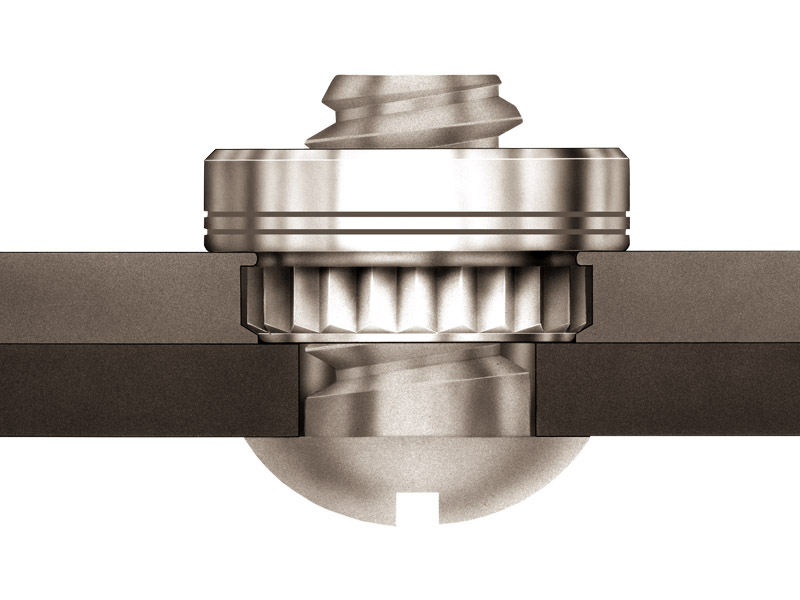

The KFS2-M2 from PREM is a high-quality broaching nut, part of the KFS2 product family. This metric nut is designed for secure fastening in various sheet metal applications.



Key specifications include an M2 x 0.4 thread size with a 6H, ASME B1.13M thread specification. The fastener material is 300 Series Stainless Steel, finished with passivation and/or testing per ASTM A380. It is suitable for use in sheet materials with a hardness of HRB 70 / HB 125 or less.



The KFS2-M2 utilizes broaching technology for mounting, requiring a specific hole size in the sheet of 3.73mm. Its dimensions include a shank length max of 1.53mm, dimension C of 4.19mm, dimension E of 5.56mm, and dimension T of 1.5mm. The minimum distance from the hole centerline to the edge is 4.2mm.



Performance data indicates typical installation force of 2.2 kN, pushout force of 267 N, and torque-out force of 0.68 N•m when tested on a 1.5mm FR-4 panel.

KFS2-M2 Quick Information

Product Type: Broaching Nut
Canonical Name: KFS2-M2 Broaching Nut
Subcategory: Broaching Nuts

KFS2-M2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KFS2-M2 Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

KFS2-M2 Features

  • Metric broaching nut with M2 x 0.4 thread.
  • Constructed from 300 Series Stainless Steel.
  • Suitable for sheet hardness HRB 70 / HB 125.
  • Broaching mounting type for secure installation.
  • Tested performance data for installation and pushout.

KFS2-M2 Applications

  • Ideal for metric sheet metal applications.
  • Used in electronic device enclosures.
  • Suitable for automotive sub-assemblies.
  • Provides permanent internal threads.

KFS2-M2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the thread size of the KFS2-M2?

M2 x 0.4 with ASME B1.13M class 6H internal thread.

What material is the KFS2-M2 made from?

300 Series Stainless Steel.

How is the KFS2-M2 installed?

It is mounted by broaching into a sheet.

What are the pushout and torque-out forces for the KFS2-M2?

Typical pushout is 267 N and torque-out is 0.68 N·m when installed in a 1.5 mm FR-4 panel.

What sheet hardness is suitable for the KFS2-M2?

For use in sheet hardness HRB 70 / HB 125 or less.

What is the required mounting hole size for the KFS2-M2?

A hole size of 3.73 mm (+0.08 mm) is required.
