| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
298 pcs
|
298 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Product Type | |
| Thread Size |

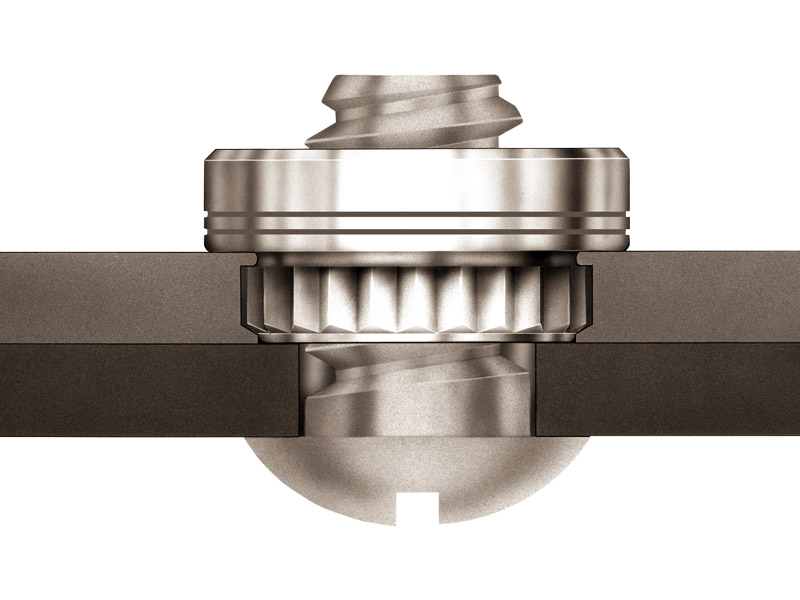

The KFS2-632 from PENN is a broaching nut designed for permanent fastening in sheet metal applications. Constructed from 300 Series Stainless Steel, it offers durability and corrosion resistance.
This nut features a #6-32 thread size (0.138-32) with a 2B ASME B1.1 specification. It is designed for broaching mounting and is suitable for use in sheet materials with a hardness of HRB 70 / HB 125 or less, including PC boards. The standard finish is passivated and/or tested per ASTM A380.
Key dimensions include a shank maximum of 0.06 inches, a C dimension of 0.231 inches, and an E dimension of 0.281 inches. The required hole size in the sheet is 0.213 inches, with a minimum distance from the hole centerline to the edge of 0.22 inches. The T dimension is 0.065 inches.
Performance data indicates a typical installation force of 500 lbs, a typical pushout force of 80 lbs, and a typical torque-out of 30 in. lbs. when installed in a 0.060 inch FR-4 panel.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.95 | $4.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KFS2-632 broaching nut has a thread size of #6-32.
The KFS2-632 broaching nut is made from 300 Series Stainless Steel.
The mounting type for the KFS2-632 broaching nut is broaching.
The KFS2-632 nut is for use in sheet hardness HRB 70 / HB 125 or less.
The typical installation force for the KFS2-632 nut in a 0.060 inch FR-4 panel is 500 lbs.
The typical pushout force for the KFS2-632 nut in a 0.060 inch FR-4 panel is 80 lbs.
The typical torque-out for the KFS2-632 nut in a 0.060 inch FR-4 panel is 30 in. lbs.
