| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,306 pcs
|
2306 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Product Type | |
| SVHC Present | |
| Thread Size |

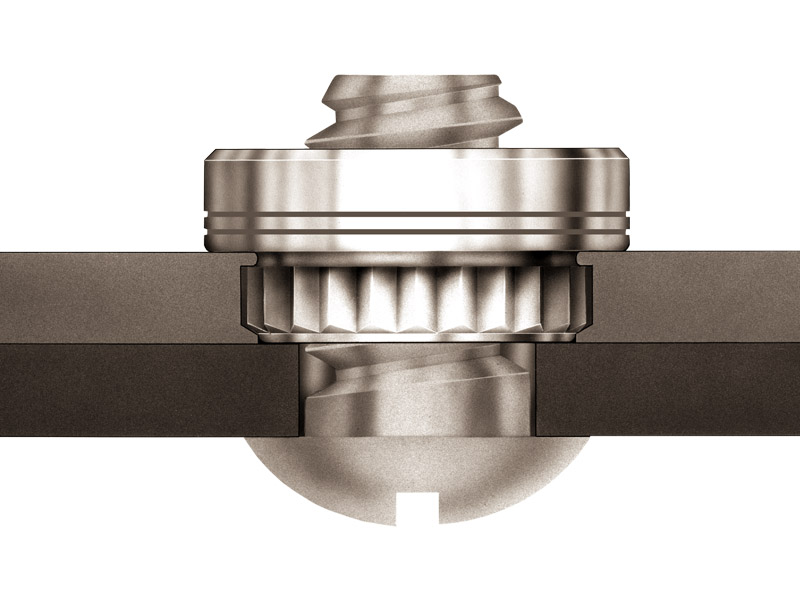

The KFS2-256 is a broaching nut manufactured by QPL, part of the KFS2 product family. This internal thread fastener utilizes broaching technology for mounting. It features a #2-56 thread size (2B, ASME B1.1) and is made from durable 300 Series Stainless Steel, finished with passivation and/or testing per ASTM A380.
Designed for applications requiring secure fastening in sheet materials, the KFS2-256 is suitable for sheets with a hardness rating of HRB 70 / HB 125 or less, including PC boards. Key mechanical specifications include a maximum shank of 0.06 inches and a hole size in the sheet of 0.147 inches (+.003/-.000). Installation performance data indicates a typical torque-out force of 400 lbs. and a pushout force of 60 lbs. when installed in 0.060 inch FR-4 panel material.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KFS2-256 broaching nut has a thread size of #2-56.
The KFS2-256 broaching nut is made from 300 Series Stainless Steel.
The KFS2-256 broaching nut is designed for use in sheet materials with a hardness of HRB 70 / HB 125 or less.
The typical installation torque-out force for the KFS2-256 is 400 lbs.
The typical pushout force for the KFS2-256 is 60 lbs.
