| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Product Type | |
| Thread Size |

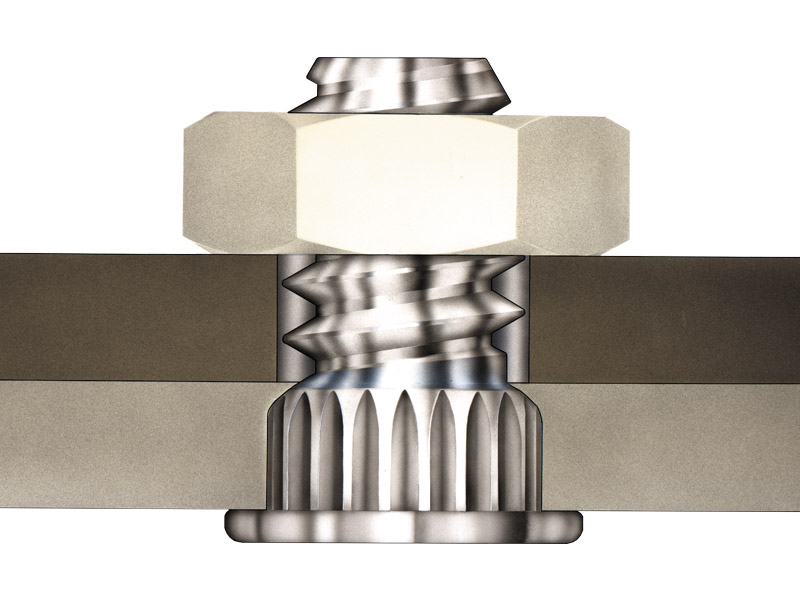

The KFH-M4-12ET from Bossard is a broaching stud designed for secure fastening in various applications. It features an M4 thread size with a 0.7mm pitch and conforms to the 6g, ASME B1.13M thread specification. The stud is made from CDA-510 Phosphor Bronze, ensuring durability and performance.
This broaching stud is designed for use in sheet materials with a hardness of HRB 55 / HB 96 or less. The mounting type is broaching, and it has an external thread. Key dimensions include a length of 12mm (± 0.25mm), a maximum hole size in attached parts of 4.8mm, and a minimum distance from the hole centerline to the edge of 5.1mm. The shank has a maximum length of 1.65mm, and the T dimension is 0.51mm (± 0.13mm).
The standard finish is Annealed, ASTM B545, Class B with a Clear Preservative Coating and Electro-Plated Tin. The required hole size in the sheet is 4.2mm (+0.08mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is M4 x 0.7.
The stud is made from CDA-510 Phosphor Bronze.
The mounting type is Broaching.
The required hole size in the sheet is 4.2mm.
The length is 12mm with a tolerance of ± 0.25mm.
