| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Length | |
| Mounting Type | |
| Product Type | |
| Rated Current | |
| Thread Size |

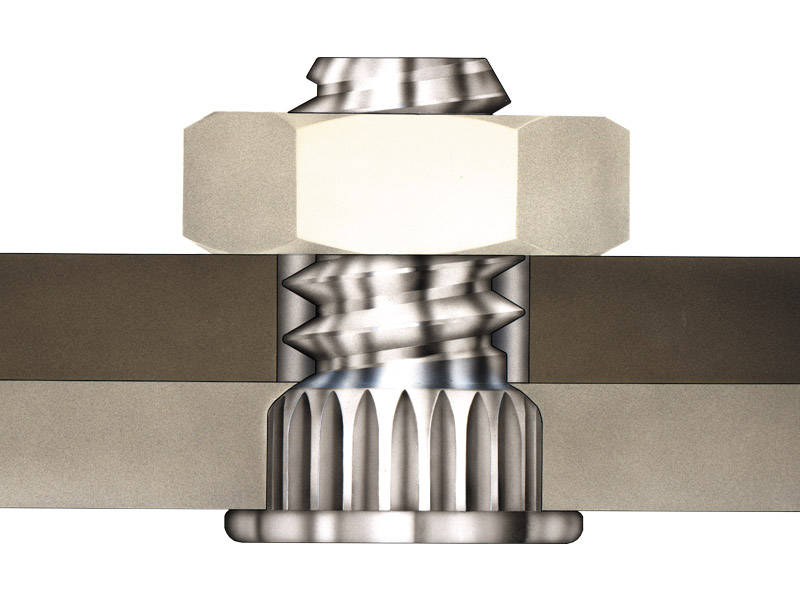

The Penn Engineering KFH-832-12ET is a broaching stud from the KFH product family, featuring a #8-32 thread size (2A, ASME B1.1). It is constructed from CDA-510 Phosphor Bronze with an annealed finish, ASTM B545, Class B with clear preservative coating, and electro-plated tin.
This stud is designed for broaching mounting and is suitable for use in sheet hardness HRB 55 / HB 96 or less, including PC boards. Key mechanical specifications include a shank max of 0.065 inches, a length of 0.75 inches, and a maximum hole size in attached parts of 0.195 inches. The minimum distance from the hole centerline to the edge is 0.2 inches.
Performance data indicates an installation torque of 400 lbs., a maximum nut tightening torque of 15 in. lbs., and a pushout force of 80 lbs. It also has a rated current of 24 Amps and a torque-out value of 16 in. lbs. when tested on 0.060 inch FR-4 panel material.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
#8-32 (0.164-32).
CDA-510 Phosphor Bronze.
0.75 inches.
24 Amps.
Annealed, electro-plated tin per ASTM B545 Class B with clear preservative coating.
80 lbs.
16 in. lbs.
