| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Length | |
| Mounting Type | |
| Product Type | |
| Rated Current | |
| Thread Size | |
| Type |

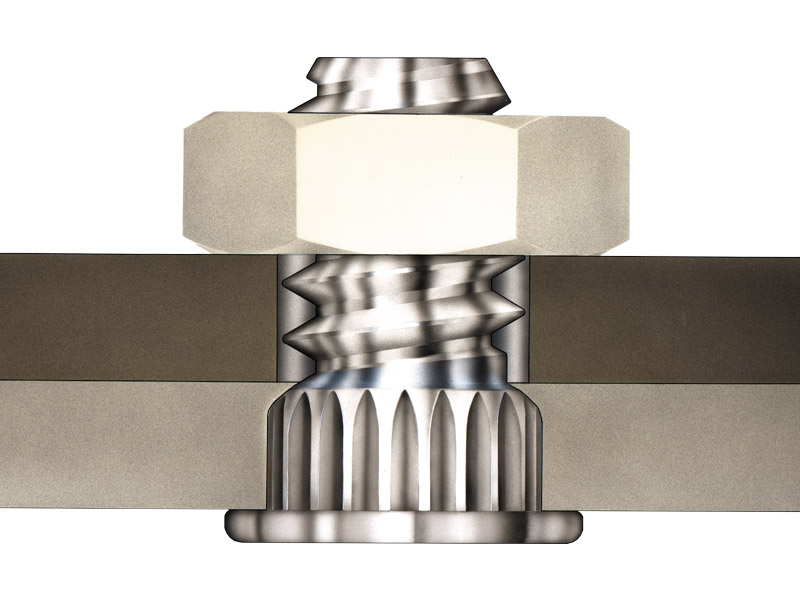

The PEM KFH-632-6ET is a broaching stud from the KFH product family, designed for robust applications. This external type stud utilizes broaching technology for mounting, ensuring a secure and reliable connection.
Key specifications include a 6-32 thread size (0.138-32) compliant with ASME B1.1 2A standards. The fastener is made from CDA-510 Phosphor Bronze, offering good material properties. The standard finish is Annealed, ASTM B545, Class B with Clear Preservative Coating, Electro-Plated Tin. It is suitable for use in sheet hardness up to HRB 55 / HB 96 or less, including PC boards.
Mechanical performance data indicates an installation force of 400 lbs., a maximum nut tightening torque of 8 in. lbs., and a pushout force of 70 lbs. The rated current is 19 Amps. The product is tested on 0.060 in. FR-4 Panel material with a torque-out value of 11 in. lbs.
This broaching stud is designed for applications requiring a strong mechanical bond in sheet metal or PC board assemblies. Its construction and specifications make it suitable for various industrial and electronic applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 6-32, specified as 0.138-32 per ASME B1.1 2A.
The fastener material is CDA-510 Phosphor Bronze.
The mounting type is Broaching.
The maximum nut tightening torque is 8 in. lbs.
The rated current is 19 Amps.
