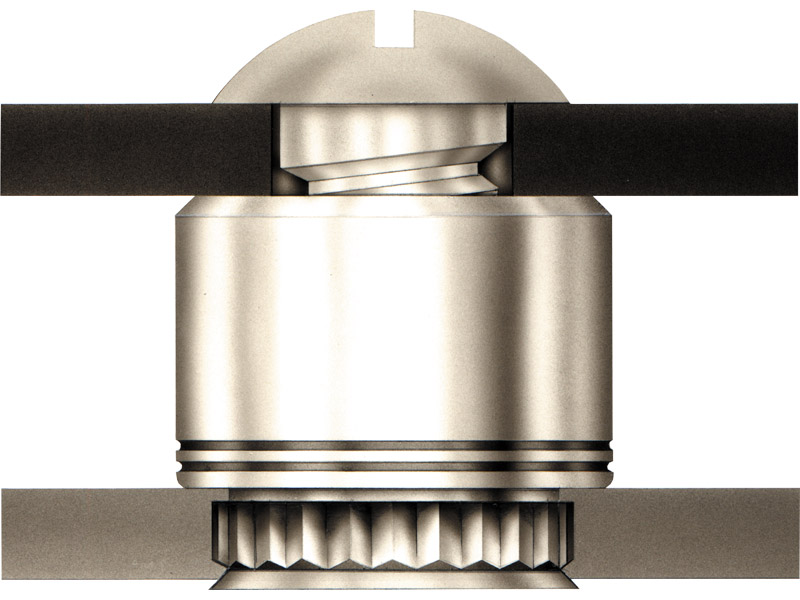

The KFB3-632-10-ET from PennEngineering is a broach/flare-mount standoff designed for reliable fastening applications. Constructed from brass, this standoff features a #6-32 thread specification (2B, ASME B1.1) and is suitable for use in sheet materials with a hardness of HRB 65 / HB 116 or less, including PC boards.
This standoff employs broaching technology for its mounting type, ensuring a secure and permanent installation. Key dimensions include a maximum shank of 0.09 inches, a B dimension of 0.171 inches, and an E dimension of 0.28 inches. The minimum thread length is 0.312 inches, with a specified hex hole size in the sheet of 0.213 inches. It is designed for sheet thicknesses ranging from 0.050 to 0.065 inches.
The standard finish is Annealed, ASTM B545, Class B with a Clear Preservative Coating, Electro-Plated Tin. The KFB3-632-10-ET is part of the KFB3 product family and is classified as a standoff, offering a robust solution for panel and component mounting in various electronic and industrial assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KFB3-632-10-ET standoff is made from Brass.
The thread size is #6-32.
The recommended sheet thickness is 0.050-0.065 inches.
The KFB3-632-10-ET standoff uses a Broach / Flare mounting type.
