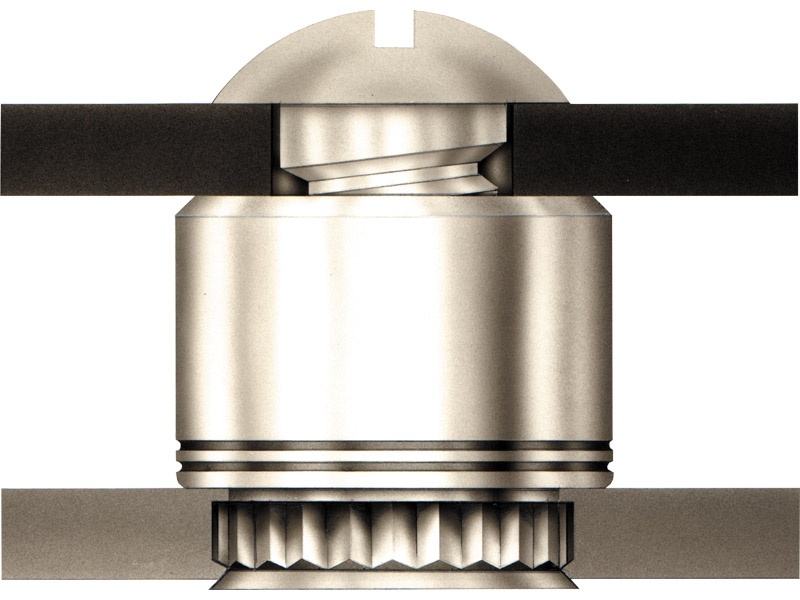

KFB3-440-8ET The PEM KFB3-440-8ET is a broach/flare-mount standoff made of brass with a #4-40 internal thread. It is designed for panel thicknesses between 0.050 and 0.065 inches.
Mfr Part #:

KFB3-440-8ET

Available from 1 distributors
Mfr Name: PEM
PEM
The PEM KFB3-440-8ET is a broach/flare-mount standoff made of brass with a #4-40 internal thread. It is designed for panel thicknesses between 0.050 and 0.065 inches.
✓ Total Stock: 477 pcs
$ Price Range: $165.89

KFB3-440-8ET Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
477 pcs
On Request
477 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KFB3-440-8ET Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Head Diameter
Mounting Type
Panel Thickness
Product Type
Rated Current
Thread Size
View Similar Products (0)

KFB3-440-8ET Description

Short technical summary and product information.

The PEM KFB3-440-8ET is a broach/flare-mount standoff from the KFB3 series, manufactured by PEM. Constructed from brass with a standard finish of Annealed, ASTM B545, Class B with Clear Preservative Coating, Electro-Plated Tin, this standoff features an internal #4-40 thread compliant with 2B, ASME B1.1 standards.



Designed for broaching and flare-mount applications, it is suitable for panel thicknesses ranging from 0.050 to 0.065 inches. The standoff has a maximum shank length of 0.09 inches and a body diameter of 0.122 inches. Key mechanical dimensions include a head diameter of 0.219 inches and a minimum thread length of 0.250 inches.



Installation performance data indicates a typical installation force of 1000 lbs and a pushout force of 140 lbs when used with 0.060 inch FR-4 panels. The typical torque-out is 18 in. lbs. This component is also rated for a current of 42 Amps.

KFB3-440-8ET Quick Information

Product Type: Standoff
Series: KFB3
Canonical Name: PEM KFB3-440-8ET Broach/Flare-Mount Standoff
Subcategory: Broach/Flare-Mount Standoffs

KFB3-440-8ET Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KFB3-440-8ET Estimated Pricing

Qty Low High
1+ $165.89 $165.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

KFB3-440-8ET Features

  • Broach/flare-mount standoff for secure installation.
  • Constructed from durable brass material.
  • Features #4-40 internal thread size.
  • Suitable for 0.050-0.065 inch panel thickness.
  • Rated for 42 Amps of current.

KFB3-440-8ET Applications

  • Ideal for PCB mounting applications.
  • Used in electronic enclosures and chassis.
  • Provides secure component spacing.
  • Suitable for high current applications.

KFB3-440-8ET FAQs

5 frequently asked questions generated from this part’s specifications.
What is the thread size and standard for the PEM KFB3-440-8ET standoff?

The PEM KFB3-440-8ET standoff has a #4-40 thread size and conforms to the 2B, ASME B1.1 standard.

What material is the KFB3-440-8ET standoff made of?

The KFB3-440-8ET standoff is made of brass.

What panel thickness is the PEM KFB3-440-8ET standoff designed for?

The PEM KFB3-440-8ET standoff is designed for panel thicknesses ranging from 0.050 to 0.065 inches.

What are the typical installation and pushout forces for the KFB3-440-8ET standoff?

For 0.060 in. FR-4 panels, the typical installation force is 1000 lbs and the pushout force is 140 lbs.

What is the rated current for the KFB3-440-8ET standoff?

The KFB3-440-8ET standoff is rated for 42 Amps.
